2) PARAMETRIC: (Use the computer to generate the required plots.) The Dual cycle is a more realistic representation for

[answerhappygod]

2 Parametric Use The Computer To Generate The Required Plots The Dual Cycle Is A More Realistic Representation For 1 (125.91 KiB) Viewed 45 times

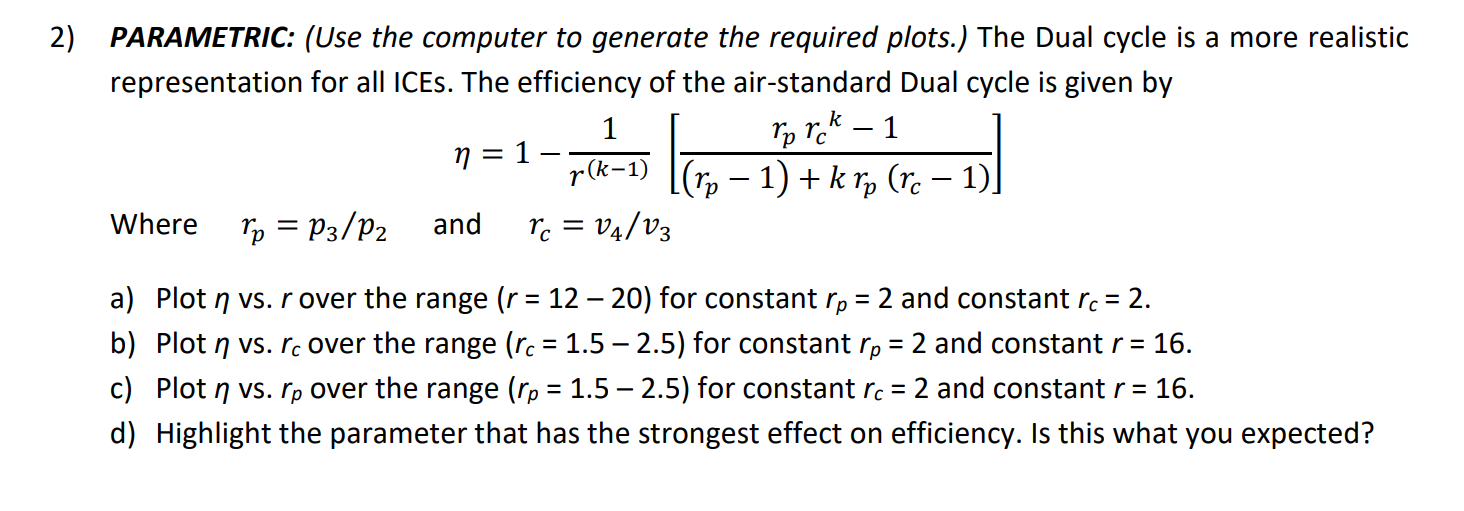

2) PARAMETRIC: (Use the computer to generate the required plots.) The Dual cycle is a more realistic representation for all ICEs. The efficiency of the air-standard Dual cycle is given by 1 rprck-1 n = 1 r(k-1) (Tp - 1) + kr (rc - 1) Where rp = P3/P2 and rc = V4/V3 = = a) Plot n vs. r over the range (r = 12 – 20) for constant rp = 2 and constant rc = 2. b) Plot n vs. rc over the range (rc = 1.5 – 2.5) for constant rp = 2 and constant r = 16. c) Plot n vs. rp over the range (rp = 1.5 – 2.5) for constant rc = 2 and constant r = 16. d) Highlight the parameter that has the strongest effect on efficiency. Is this what you expected?
