The Rotation Of The Gear Is Controlled By The Horizontal Motion Of End A Of The Rack Ab If The Piston Rod Has A Constan 1 (80.16 KiB) Viewed 56 times
Additional data not given in question:
Motion of Rod AB at this instant is to the left.
Radius of the gear is 0.2 m.

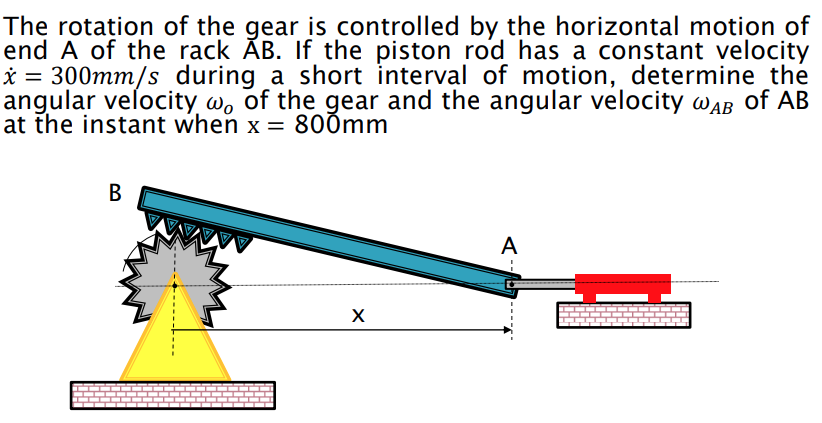

The rotation of the gear is controlled by the horizontal motion of end A of the rack AB. If the piston rod has a constant velocity * = 300mm/s during a short interval of motion, determine the angular velocity, w, of the gear and the angular velocity WAB of AB at the instant when x= 800mm B A Х
