3. Given: The initial configuration of the offset slidercrank has 62 = 40°. A second configuration has 82' = -40°. Deter

Post by answerhappygod »

3 Given The Initial Configuration Of The Offset Slidercrank Has 62 40 A Second Configuration Has 82 40 Deter 1
3 Given The Initial Configuration Of The Offset Slidercrank Has 62 40 A Second Configuration Has 82 40 Deter 1 (44.45 KiB) Viewed 51 times

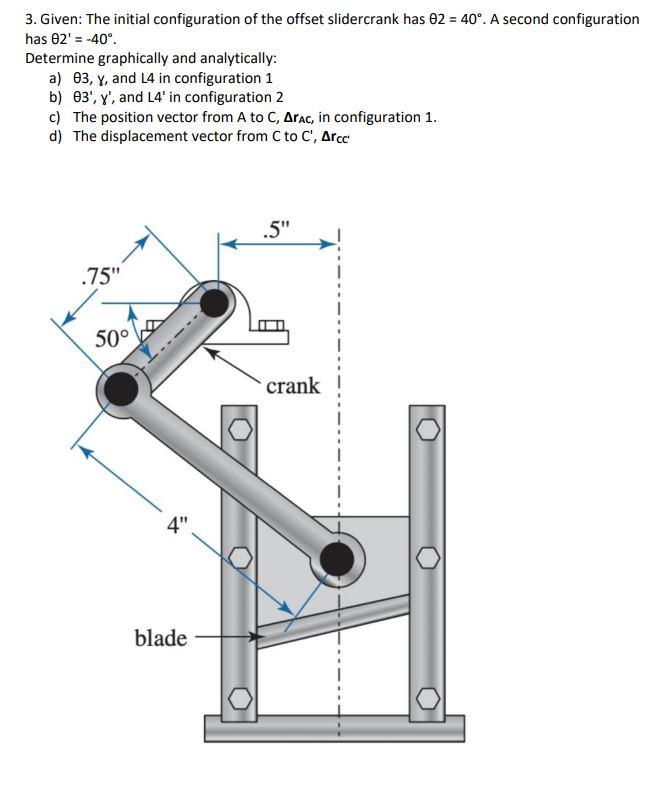

3. Given: The initial configuration of the offset slidercrank has 62 = 40°. A second configuration has 82' = -40°. Determine graphically and analytically: a) 83, y, and L4 in configuration 1 b) 83', '', and L4' in configuration 2 c) The position vector from A to C, Arac, in configuration 1. d) The displacement vector from C to C', Arco .5" .75" 50° crank 4" blade
