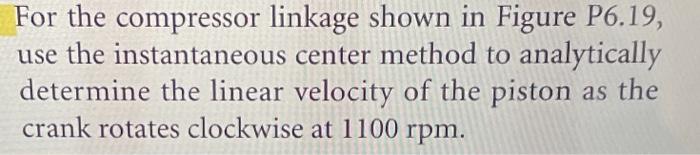

For the compressor linkage shown in Figure P6.19, use the instantaneous center method to analytically determine the linear velocity of the piston as the crank rotates clockwise at 1100 rpm.

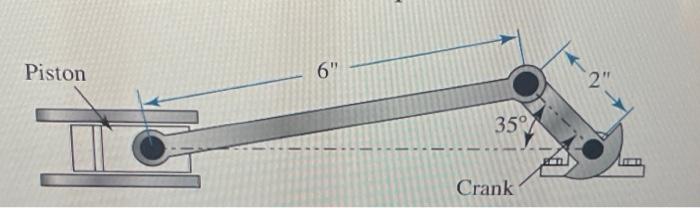

Piston 6" 2" 35° SA Crank
