Question 8 (23 points) Consider the 4-node quadrilateral element shown in the figure below and consider point A located

[answerhappygod]

Question 8 23 Points Consider The 4 Node Quadrilateral Element Shown In The Figure Below And Consider Point A Located 1 (61.03 KiB) Viewed 36 times

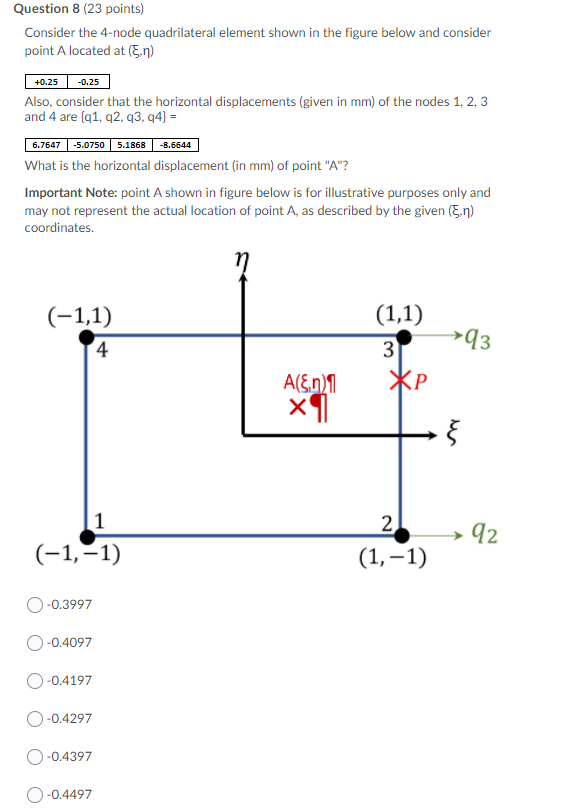

Question 8 (23 points) Consider the 4-node quadrilateral element shown in the figure below and consider point A located at (g.n) +0.25 -0.25 Also, consider that the horizontal displacements (given in mm) of the nodes 1, 2, 3 and 4 are (91, 92, 93, 94) = 6.7647-5.0750 5.1868-8.6644 What is the horizontal displacement (in mm) of point "A"? Important Note:point A shown in figure below is for illustrative purposes only and may not represent the actual location of point A, as described by the given (g.n) coordinates. (-1,1) 4 (1,1) 3 3 Р >93 A(n) 1 x 1 →š 1 (-1,-1) 2 (1,-1) 92 -0.3997 -0.4097 -0.4197 -0.4297 -0.4397 -0.4497
