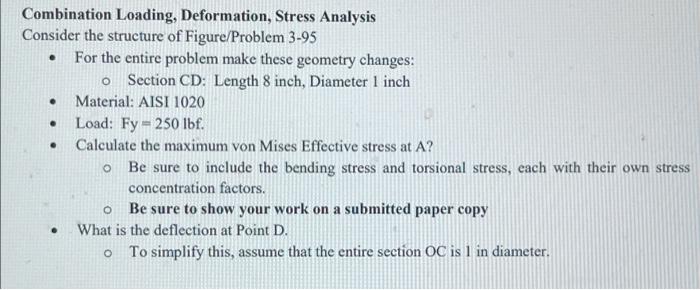

. . Combination Loading, Deformation, Stress Analysis Consider the structure of Figure/Problem 3-95 • For the entire problem make these geometry changes: o Section CD: Length 8 inch, Diameter 1 inch Material: AISI 1020 Load: Fy - 250 lbf. Calculate the maximum von Mises Effective stress at A? o Be sure to include the bending stress and torsional stress, each with their own stress concentration factors. Be sure to show your work on a submitted paper copy What is the deflection at Point D. o To simplify this, assume that the entire section OC is l in diameter. . O .

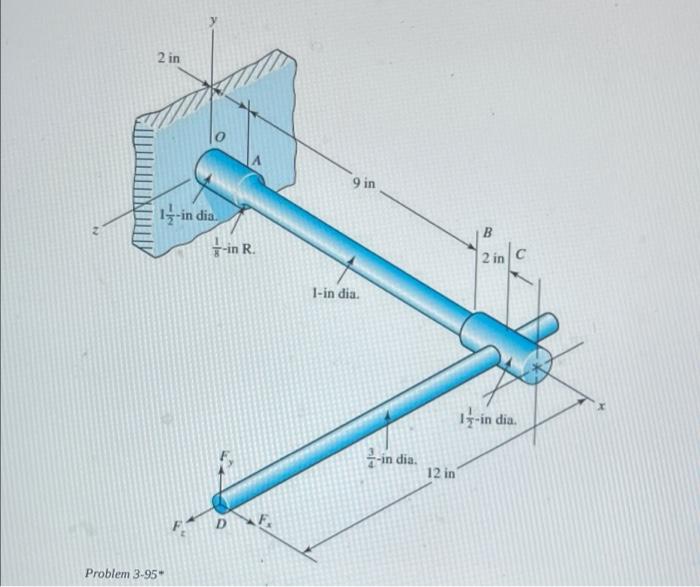

2 in 9 in 1-in dia B *-in R. 12inc 1-in dia. 15-in dia. -in dia. 12 in Problem 3-95"
