Determine the deflection of point when the load P is applied The deflection of point Dis in
Help, please. I will upvote. Thanks
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Help, please. I will upvote. Thanks
Help, please. I will upvote. Thanks

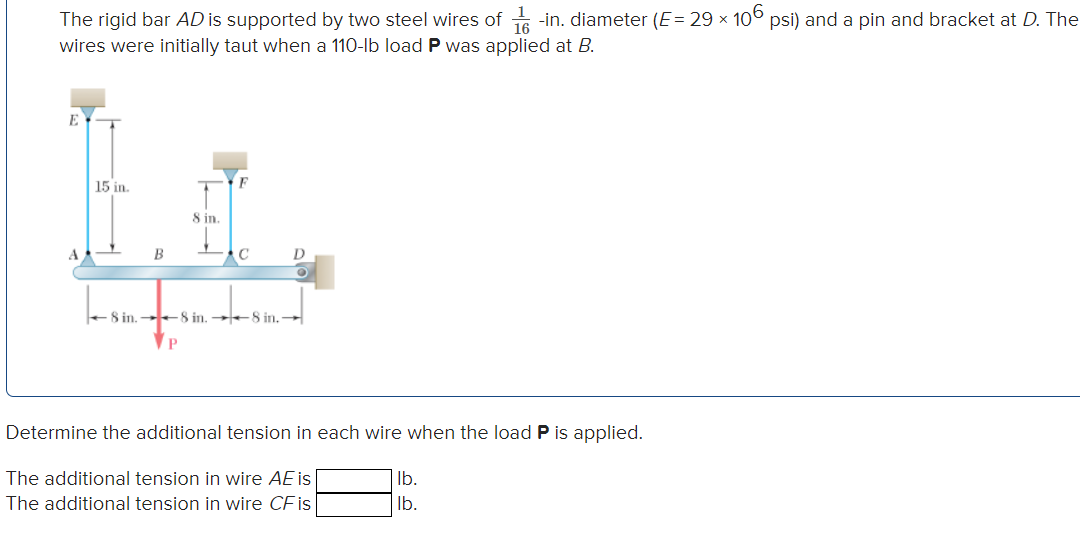

The rigid bar AD is supported by two steel wires of lo -in. diameter (E = 29 x 106 psi) and a pin and bracket at D. The wires were initially taut when a 110-lb load P was applied at B. 16 15 in 4 8 in A B с D O Sin.Sin.-Sin. P Determine the additional tension in each wire when the load P is applied. The additional tension in wire AE is The additional tension in wire CF is Ib. Ib.
Determine the deflection of point when the load P is applied The deflection of point Dis in
The rigid bar AD is supported by two steel wires of lo -in. diameter (E = 29 x 106 psi) and a pin and bracket at D. The wires were initially taut when a 110-lb load P was applied at B. 16 15 in 4 8 in A B с D O Sin.Sin.-Sin. P Determine the additional tension in each wire when the load P is applied. The additional tension in wire AE is The additional tension in wire CF is Ib. Ib.
Determine the deflection of point when the load P is applied The deflection of point Dis in
