Question No. 2: In the mechanism shown below, link 2 is rotating CCW at the rate of 500 rad/s (constant). In the positio

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question No. 2: In the mechanism shown below, link 2 is rotating CCW at the rate of 500 rad/s (constant). In the positio

Post by answerhappygod »

Question No 2 In The Mechanism Shown Below Link 2 Is Rotating Ccw At The Rate Of 500 Rad S Constant In The Positio 1
Question No 2 In The Mechanism Shown Below Link 2 Is Rotating Ccw At The Rate Of 500 Rad S Constant In The Positio 1 (306.12 KiB) Viewed 22 times
kindly provide its correct solution sir and match all the answers given

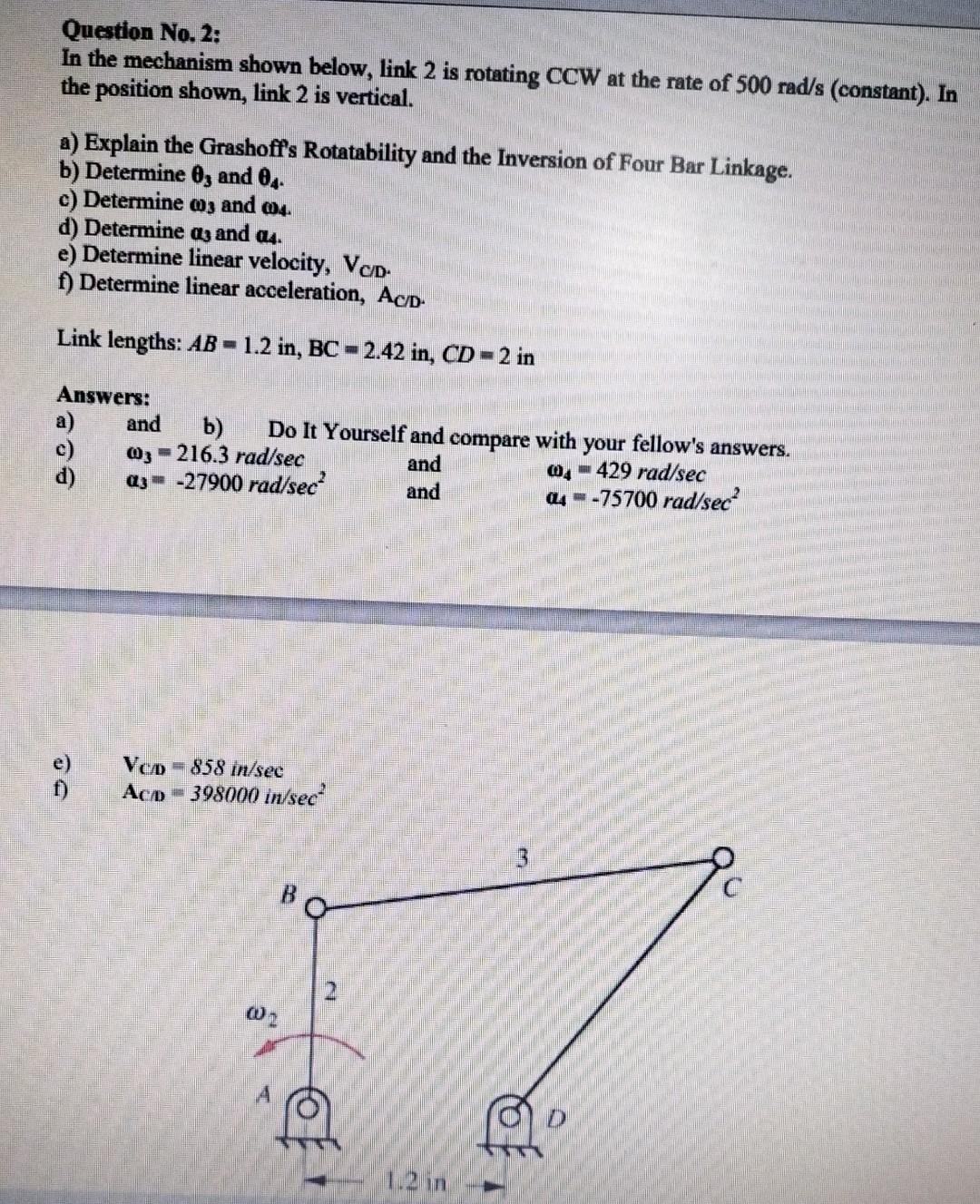

Question No. 2: In the mechanism shown below, link 2 is rotating CCW at the rate of 500 rad/s (constant). In the position shown, link 2 is vertical. a) Explain the Grashoff's Rotatability and the Inversion of Four Bar Linkage. b) Determine 0, and 04. c) Determine 03 and 04. d) Determine Q3 and 04. e) Determine linear velocity, Vud. f) Determine linear acceleration, ACD- Link lengths: AB - 1.2 in, BC - 2.42 in, CD-2 in C! Answers: and b) Do It Yourself and compare with your fellow's answers. 03 - 216.3 rad/sec and 04 -429 rad/sec d) a3- -27900 rad/sec and 04 - -75700 rad/sec Vcp = 858 in/sec Acp = 398000 in/sec 2 W2 5 1.2 in
