Problem 1. Textbook Problem 4-92 4-92 a = The steel curved bar shown has a rectangular cross section with a radial heigh

Post by answerhappygod »

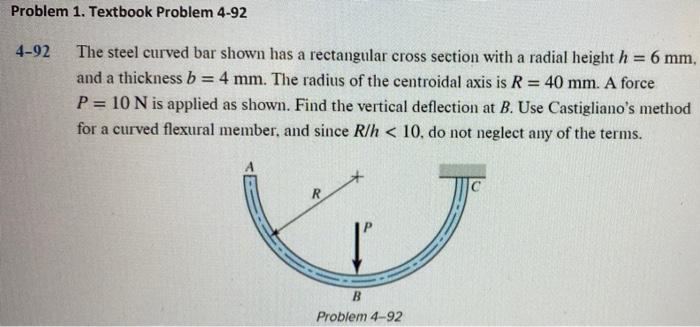

Problem 1 Textbook Problem 4 92 4 92 A The Steel Curved Bar Shown Has A Rectangular Cross Section With A Radial Heigh 1
Problem 1 Textbook Problem 4 92 4 92 A The Steel Curved Bar Shown Has A Rectangular Cross Section With A Radial Heigh 1 (35.65 KiB) Viewed 27 times
Problem 1. Textbook Problem 4-92 4-92 a = The steel curved bar shown has a rectangular cross section with a radial height h = 6 mm, and a thickness b = 4 mm. The radius of the centroidal axis is R = 40 mm. A force P= 10 N is applied as shown. Find the vertical deflection at B. Use Castigliano's method for a curved flexural member, and since R/h < 10, do not neglect any of the terms. R 0 B Problem 4-92
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
