Problem 5 Consider the steam flow from a low-pressure nozzle at an angle ai = 65°. At the inlet of the nozzle steam is s

Post by answerhappygod »

Problem 5 Consider The Steam Flow From A Low Pressure Nozzle At An Angle Ai 65 At The Inlet Of The Nozzle Steam Is S 1
Problem 5 Consider The Steam Flow From A Low Pressure Nozzle At An Angle Ai 65 At The Inlet Of The Nozzle Steam Is S 1 (15.99 KiB) Viewed 38 times

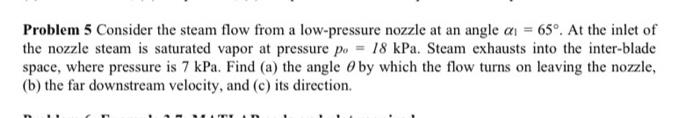

Problem 5 Consider the steam flow from a low-pressure nozzle at an angle ai = 65°. At the inlet of the nozzle steam is saturated vapor at pressure po = 18 kPa. Steam exhausts into the inter-blade space, where pressure is 7 kPa. Find (a) the angle O by which the flow turns on leaving the nozzle, (b) the far downstream velocity, and (c) its direction.
