Question No 6 For The Four Bar Linkage Assume That Oz 50 Rad S Cw And Az 1600 Rad S Cw A Explain The Grashoff S 1 (301.4 KiB) Viewed 23 times

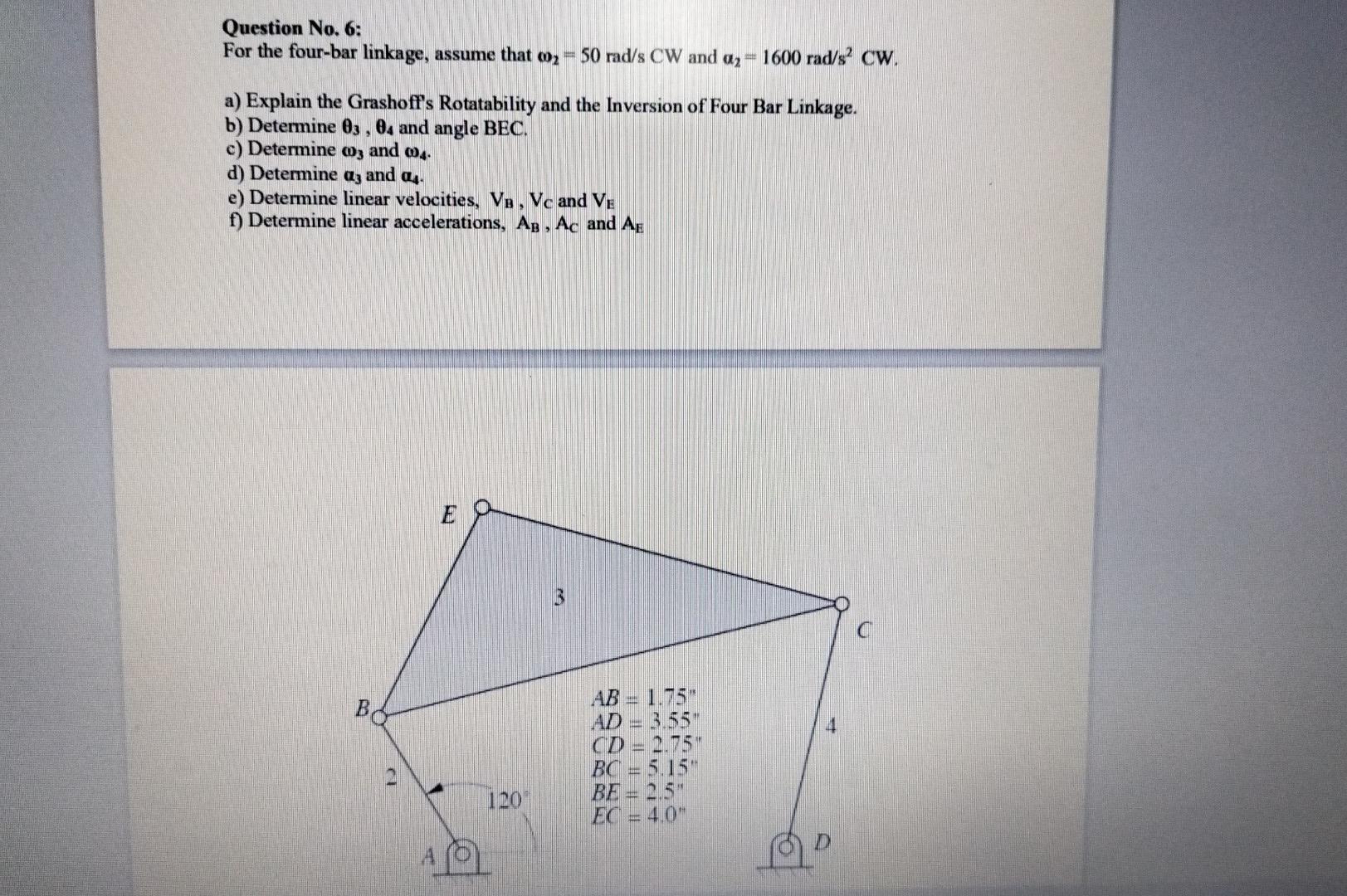

kindly provide its accurate solution sir and solve all tha parts Question No. 6: For the four-bar linkage, assume that oz = 50 rad/s CW and az= 1600 rad/s? CW. a) Explain the Grashoff's Rotatability and the Inversion of Four Bar Linkage. b) Determine 03 , 04 and angle BEC. c) Determine 03 and 04. d) Determine Q3 and 4. e) Determine linear velocities, VB, Vc and Ve f) Determine linear accelerations, Ag , Ac and Ag E 3 во 4. AB = 1.75" AD = 3.55 CD = 2.75 BC = 5.15 BE = 2.5" EC = 4.0" 120 A
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
