Given the free body diagram (attached) of a simply
supported beam and the following information for the loads applied
and dimensions of the beam, determine the deflection of the beam at
3m (x=3m) from the left hand side of the beam.
Note: Rounding error can yield a difference between a hand
calculated answer and a software generated answer, choose the
answer that your calculations give the best approximation.

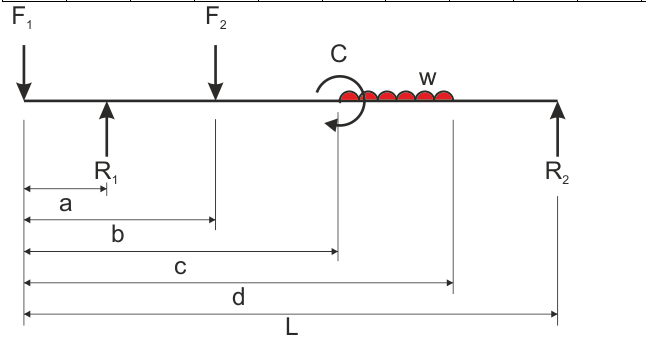

- Will Give Thumbs Up Given The Free Body Diagram Attached Of A Simply Supported Beam And The Following Information Fo 1 (12.86 KiB) Viewed 36 times
v = 410/EI (m)
v = 2731/EI (m)
v = 255/EI (m)
F F F C W R . R2 a b с d L
