Calculate the square sections for the various sections of the duct layout shown in Figure by using equal friction method

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Calculate the square sections for the various sections of the duct layout shown in Figure by using equal friction method

Post by answerhappygod »

Calculate The Square Sections For The Various Sections Of The Duct Layout Shown In Figure By Using Equal Friction Method 1
Calculate The Square Sections For The Various Sections Of The Duct Layout Shown In Figure By Using Equal Friction Method 1 (40.42 KiB) Viewed 43 times

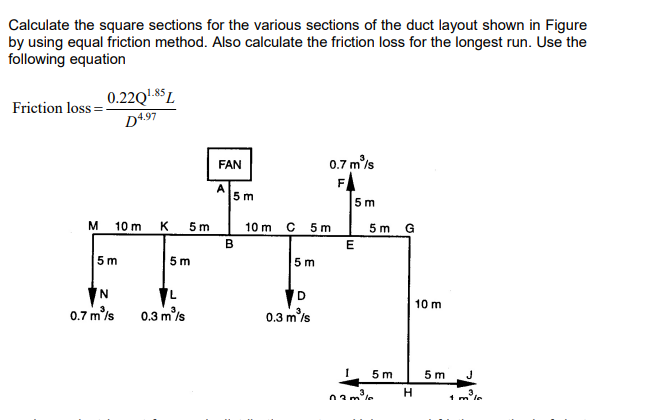

Calculate the square sections for the various sections of the duct layout shown in Figure by using equal friction method. Also calculate the friction loss for the longest run. Use the following equation Friction loss 0.2201.85 L D4.97 FAN 0.7 m/s FA 5 m 5 m M 10 m K 5m 10m C 5m 5 m G B E 5 m m 5 m 5 5 m D N 0.7 m/s 10 m 0.3 m/s 0.3 m/s 5 m 5 m J 5 m name H more
