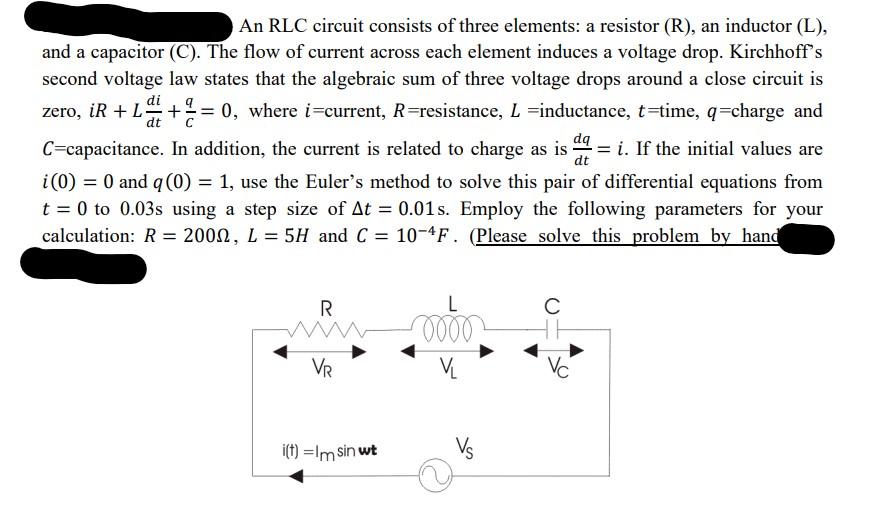

dt = C An RLC circuit consists of three elements: a resistor (R), an inductor (L), and a capacitor (C). The flow of current across each element induces a voltage drop. Kirchhoff's second voltage law states that the algebraic sum of three voltage drops around a close circuit is di zero, iR +La+ = 0, where i-current, R=resistance, L =inductance, t=time, q=charge and , C=capacitance. In addition, the current is related to charge as is dq = i. If the initial values are dt i(0) = 0 and 7(0) = 1, use the Euler's method to solve this pair of differential equations from t = 0 to 0.03s using a step size of At = 0.01s. Employ the following parameters for your calculation: R= 2001, L = 5H and C = 10-4F. (Please solve this problem by hand R L С w 0000 V VR Vc i(t) =Im sin wt
