It is intended to solve this uniform steel beam problem using unit load method. Consider only bending effects. The lengt

[answerhappygod]

It Is Intended To Solve This Uniform Steel Beam Problem Using Unit Load Method Consider Only Bending Effects The Lengt 1 (16.13 KiB) Viewed 38 times

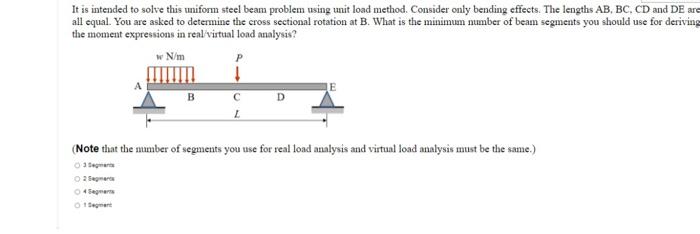

It is intended to solve this uniform steel beam problem using unit load method. Consider only bending effects. The lengths AB, BC, CD and DE are all equal. You are asked to determine the cross sectional rotation at B. What is the minimum number of beam segments you should use for deriving the moment expressions in real virtual load analysis? w Nm P с (Note that the mumber of segments you use for real load analysis and virtual load analysis must be the same.) 3 Sem O2 emer 4 Segera Sement
