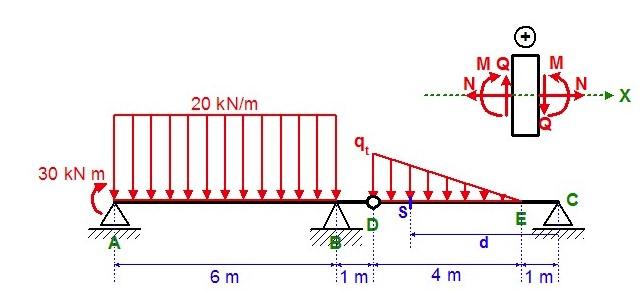

M Mq No X 20 Kn M 9 30 Knm F D 6 M 1 M 4 M 1 M 1 (24.08 KiB) Viewed 37 times
A) Provide below the calculated value for the normal force
N in the S section:
b) Provide below the calculated value for the shear force Q
in section S:
c) Give below the calculated value for the bending moment M
in section S:
d) Provide below the calculated value for the maximum
bending moment MMAX in the ABD section:
M MQ NO X 20 kN/m 9 30 kNm F d 6 m 1 m 4 m 1 m
