5.7 (B). A 3 m long cantilever ABC is built-in at A, partially supported at B, 2 m from A, with a force of 10 kN and car

[answerhappygod]

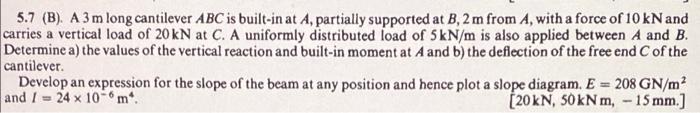

5 7 B A 3 M Long Cantilever Abc Is Built In At A Partially Supported At B 2 M From A With A Force Of 10 Kn And Car 1 (20.25 KiB) Viewed 37 times

5.7 (B). A 3 m long cantilever ABC is built-in at A, partially supported at B, 2 m from A, with a force of 10 kN and carries a vertical load of 20 kN at C. A uniformly distributed load of 5 kN/m is also applied between A and B. Determine a) the values of the vertical reaction and built-in moment at A and b) the deflection of the free end of the cantilever. Develop an expression for the slope of the beam at any position and hence plot a slope diagram. E = 208 GN/m² and I = 24 x 10-6 m. [20KN, 50 kNm, - 15 mm.]
