3 Inextensible Strap Pulley Ho Y Shown Is A Pulley Of Mass M That Is Modeled As A Disk It Is Supported By A Massless 1 (35.35 KiB) Viewed 57 times
Please mention how many Degree Of Freedoms. And simplifying assumptions. Thank you

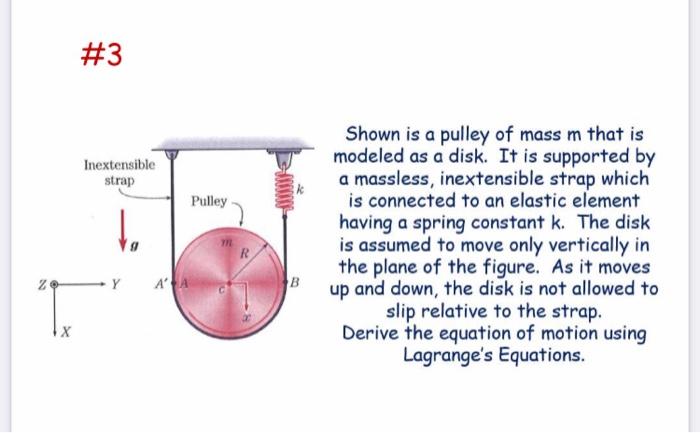

#3 Inextensible strap Pulley ho Y Shown is a pulley of mass m that is modeled as a disk. It is supported by a massless, inextensible strap which is connected to an elastic element having a spring constant k. The disk is assumed to move only vertically in the plane of the figure. As it moves up and down, the disk is not allowed to slip relative to the strap. Derive the equation of motion using Lagrange's Equations. 2 Y AL B 1x
