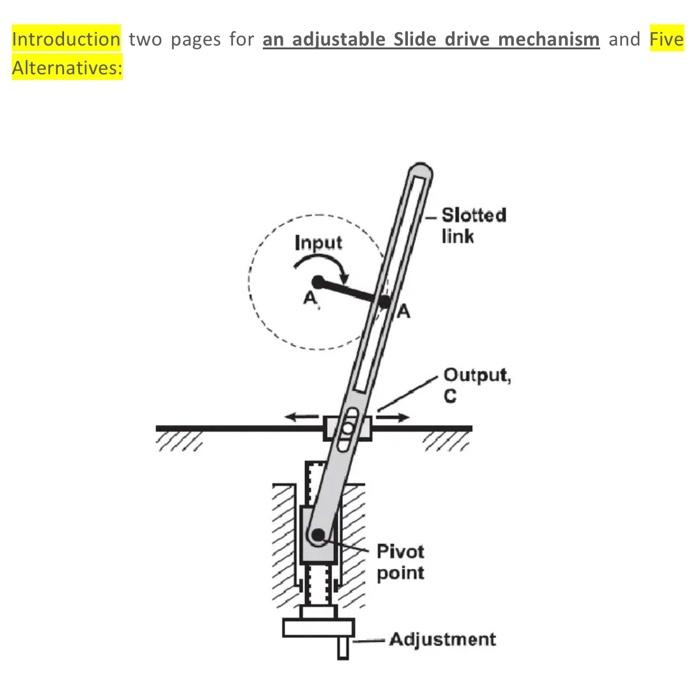

Introduction two pages for an adjustable Slide drive mechanism and Five Alternatives: -Slotted link Input A A Output, с TOID ਏ Pivot point Adjustment

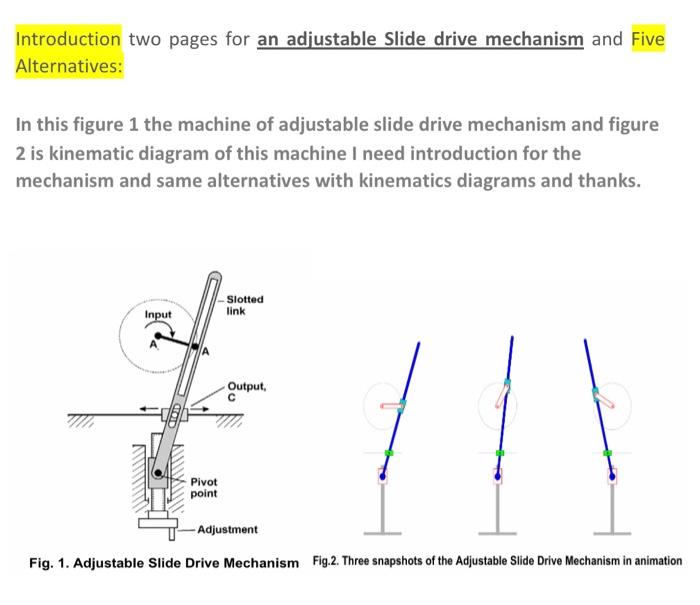

Introduction two pages for an adjustable Slide drive mechanism and Five Alternatives: In this figure 1 the machine of adjustable slide drive mechanism and figure 2 is kinematic diagram of this machine I need introduction for the mechanism and same alternatives with kinematics diagrams and thanks. Input Slotted link Output с AVV Pivot point -Adjustment Fig. 1. Adjustable Slide Drive Mechanism Fig.2. Three snapshots of the Adjustable Slide Drive Mechanism in animation
