6) Figure Q 5 shows a rectangular gate AB that separates water and glycerin (specific weight 12.36 kN/m2) in a container

[answerhappygod]

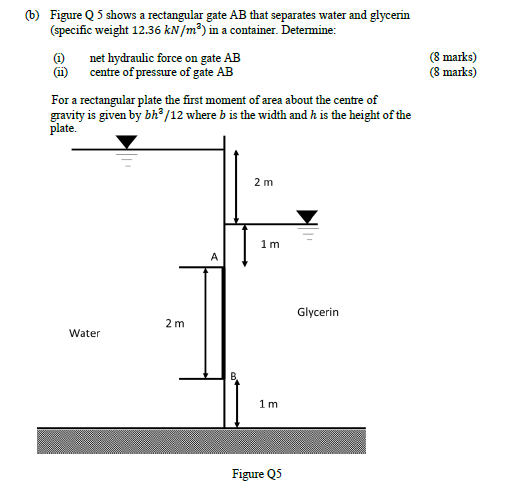

6 Figure Q 5 Shows A Rectangular Gate Ab That Separates Water And Glycerin Specific Weight 12 36 Kn M2 In A Container 1 (34.27 KiB) Viewed 32 times

6) Figure Q 5 shows a rectangular gate AB that separates water and glycerin (specific weight 12.36 kN/m2) in a container. Determine: (1) net hydraulic force on gate AB centre of pressure of gate AB For a rectangular plate the first moment of area about the centre of gravity is given by bh® /12 where b is the width and h is the height of the plate (8 marks) (8 marks) 2 m 1 m Glycerin 2 m Water 1 m Figure Q5
