Draw the shear and bending-moment diagrams for
the beam and loading shown, and determine the maximum absolute
value (a) of the shear, and (b)
of the bending moment.
Answer : (a) 104 kN (b) 189.6 kNm
Please Answer All Questions Thank You Draw The Shear And Bending Moment Diagrams For The Beam And Loading Shown And D 1 (18.31 KiB) Viewed 11 times

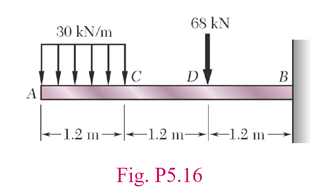

68 KN 30 kN/m D B |--120 -1.2 m 1.2 m-41.2 m Fig. P5.16
