The floor crane and the driver have a total weight of 1250 kg with a center of gravity at G. If the crane is required to

[answerhappygod]

The Floor Crane And The Driver Have A Total Weight Of 1250 Kg With A Center Of Gravity At G If The Crane Is Required To 1 (78.72 KiB) Viewed 19 times

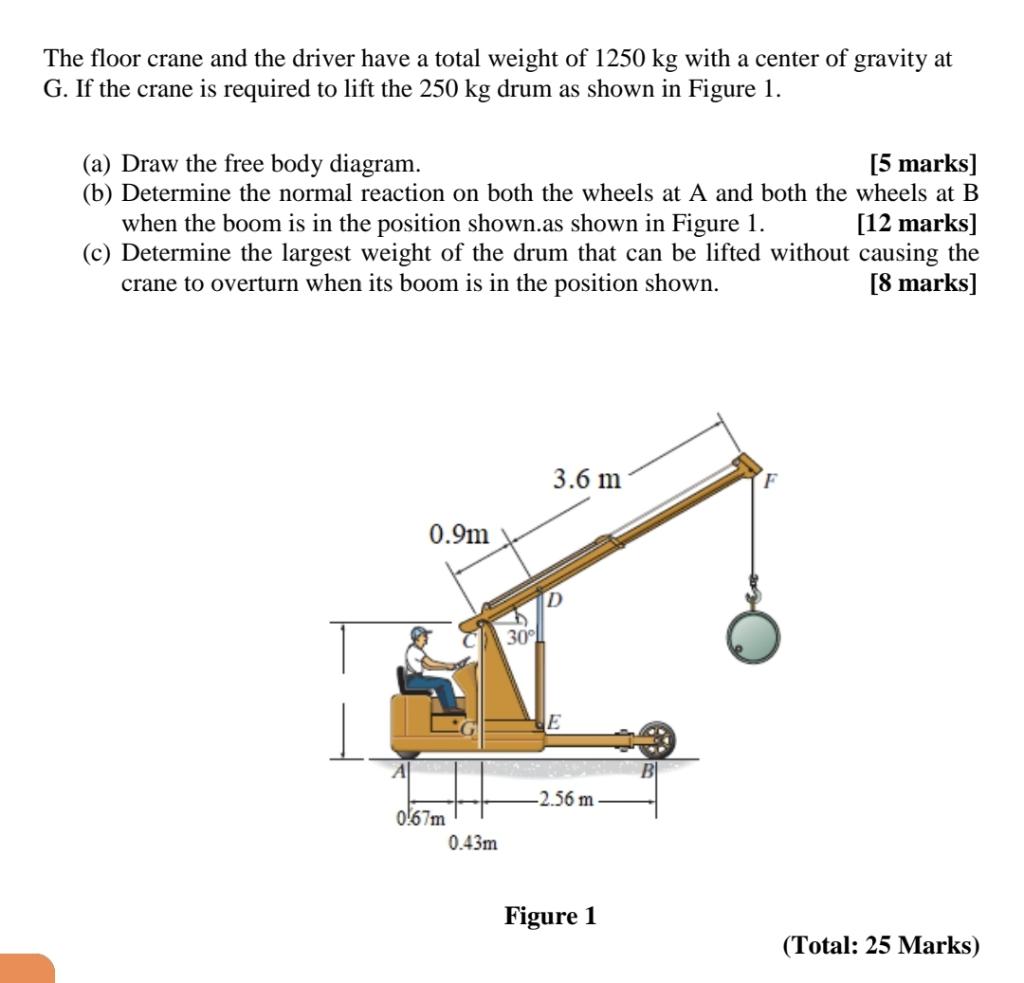

The floor crane and the driver have a total weight of 1250 kg with a center of gravity at G. If the crane is required to lift the 250 kg drum as shown in Figure 1. (a) Draw the free body diagram. [5 marks] (b) Determine the normal reaction on both the wheels at A and both the wheels at B when the boom is in the position shown.as shown in Figure 1. [12 marks] (c) Determine the largest weight of the drum that can be lifted without causing the crane to overturn when its boom is in the position shown. [8 marks] 3.6 m F 0.9m D 30 | E -2.56 m 067m 0.43m Figure 1 (Total: 25 Marks)
