1. An L-shaped member with a solid circular cross-section (diameter = 20 mm) is subjected to the loads P = 800 N and Q =

[answerhappygod]

1 An L Shaped Member With A Solid Circular Cross Section Diameter 20 Mm Is Subjected To The Loads P 800 N And Q 1 (45.9 KiB) Viewed 72 times

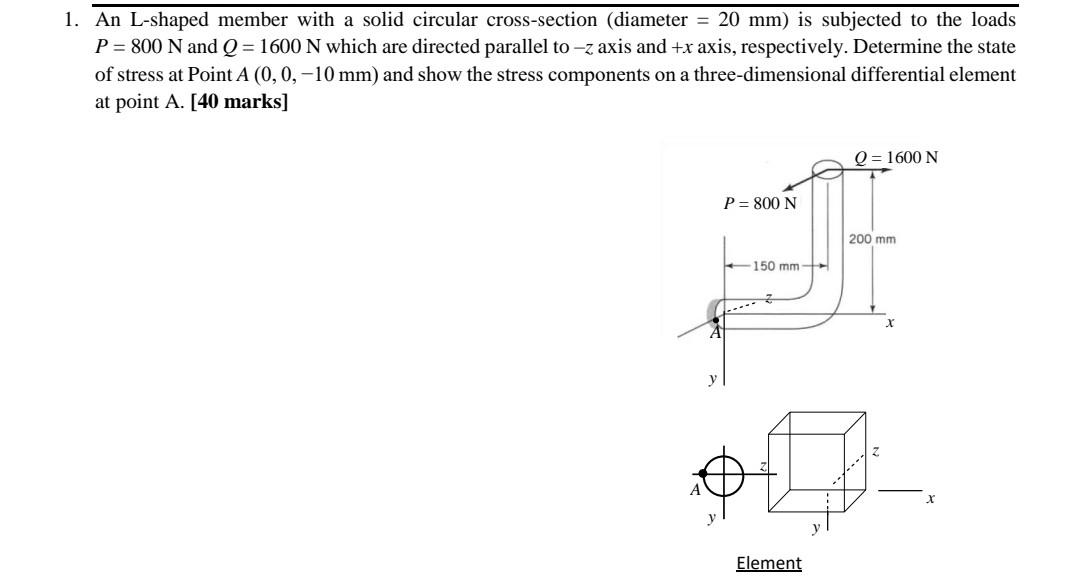

1. An L-shaped member with a solid circular cross-section (diameter = 20 mm) is subjected to the loads P = 800 N and Q = 1600 N which are directed parallel to -z axis and +x axis, respectively. Determine the state of stress at Point A (0,0,-10 mm) and show the stress components on a three-dimensional differential element at point A. [40 marks] Q = 1600 N P = 800 N 200 mm 150 mm 7 X AL Element
