A horizontal beam AD is supported by an indined strut CB-carries a load W = 2.4 kN at the position shown. The strut, whi

Post by answerhappygod »

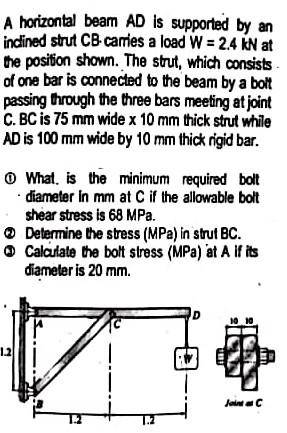

A Horizontal Beam Ad Is Supported By An Indined Strut Cb Carries A Load W 2 4 Kn At The Position Shown The Strut Whi 1
A Horizontal Beam Ad Is Supported By An Indined Strut Cb Carries A Load W 2 4 Kn At The Position Shown The Strut Whi 1 (34.11 KiB) Viewed 16 times
A horizontal beam AD is supported by an indined strut CB-carries a load W = 2.4 kN at the position shown. The strut, which consists of one bar is connected to the beam by a bolt passing through the three bars meeting at joint C. BC is 75 mm wide x 10 mm thick strut while AD is 100 mm wide by 10 mm thick rigid bar. What is the minimum required bolt diameter in mm at C if the allowable bolt shear stress is 68 MPa. Determine the stress (MPa) in strut BC. Calculate the bolt stress (MPa) at A if its diameter is 20 mm. 10.10 1.2 Jan C
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
