Consider a mass M is rigidly connected a massless rod, which pivots about the point o without friction. Given the input

Post by answerhappygod »

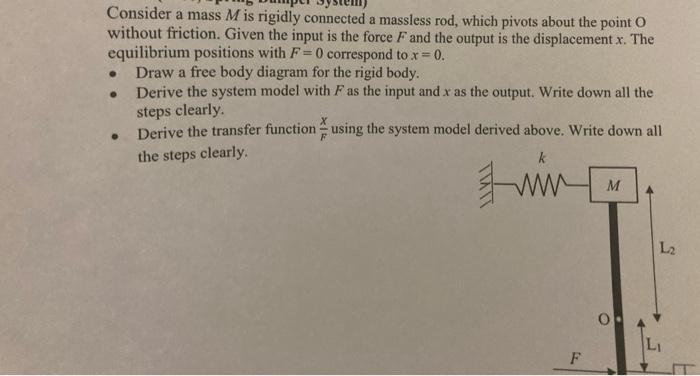

Consider A Mass M Is Rigidly Connected A Massless Rod Which Pivots About The Point O Without Friction Given The Input 1
Consider A Mass M Is Rigidly Connected A Massless Rod Which Pivots About The Point O Without Friction Given The Input 1 (28.87 KiB) Viewed 31 times
Consider a mass M is rigidly connected a massless rod, which pivots about the point o without friction. Given the input is the force F and the output is the displacement x. The equilibrium positions with F= 0 correspond to x = = 0. Draw a free body diagram for the rigid body. Derive the system model with F as the input and x as the output. Write down all the steps clearly. Derive the transfer function using the system model derived above. Write down all the steps clearly . . tuin M L2 F
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
