The isohyets for a 2-day storm on a basin of 1038.3 km are shown in Fig. 4 and the area between the isohyets as planimet
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The isohyets for a 2-day storm on a basin of 1038.3 km are shown in Fig. 4 and the area between the isohyets as planimet

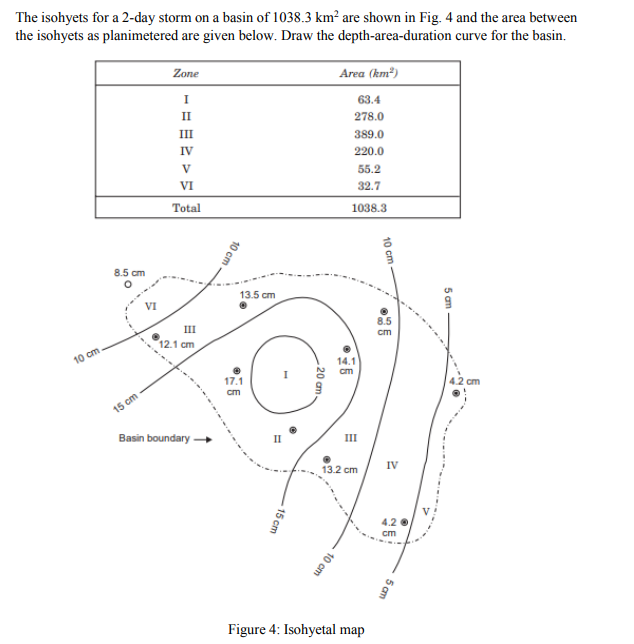

The isohyets for a 2-day storm on a basin of 1038.3 km are shown in Fig. 4 and the area between the isohyets as planimetered are given below. Draw the depth-area-duration curve for the basin. Zone 1 II III IV V VI Total Area (km) 63.4 278.0 389.0 220.0 55.2 32.7 1038.3 10 cm 10 cm 8.5 cm 13.5 cm VI 5 ση 8.5 cm III 12.1 cm 10 cm 14.1 no cm 17.1 cm 15 cm Basin boundary II III IV 13.2 cm V 15 cm 4.2 cm 10 cm 5 cm Figure 4: Isohyetal map
