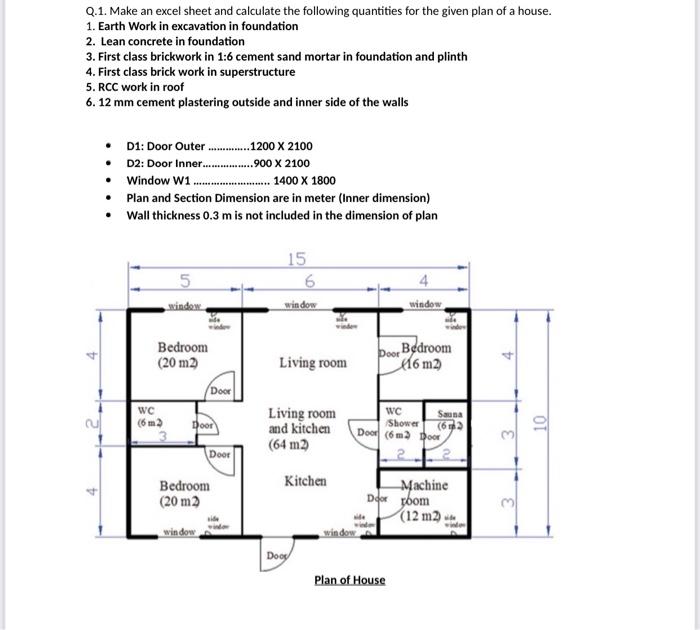

Q.1. Make an excel sheet and calculate the following quantities for the given plan of a house. 1. Earth Work in excavation in foundation 2. Lean concrete in foundation 3. First class brickwork in 1:6 cement sand mortar in foundation and plinth 4. First class brick work in superstructure 5. RCC work in roof 6. 12 mm cement plastering outside and inner side of the walls • D1: Door Outer ...........1200 X 2100 • D2: Door Inner... ...900 X 2100 Window W1. 1400 X 1800 • Plan and Section Dimension are in meter (Inner dimension) • Wall thickness 0.3 m is not included in the dimension of plan 15 5 6 window 4 window Bedroom (20 m2 poor Bedroom 116 m2) 4 Living room Door wc WC Shower Sauna (6 m2 Door Living room and kitchen (64 m2) (6 Door (6) Door OT 3 Door Kitchen Bedroom (20 m2 Door room Machine (12 m2). window Door Plan of House

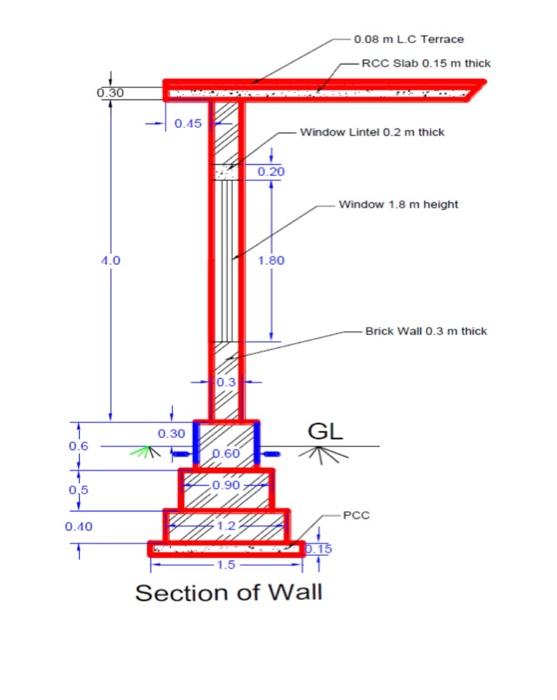

0.08 m LC Terrace -RCC Slab 0.15 m thick 0:30 0.45 - Window Lintel 0.2 m thick 0.20 -Window 1.8 m height 4.0 1.80 - Brick Wall 0.3 m thick 0.30 GL 0.6 0.60 + 0.5 0.90 PCC 0.40 2: T -1.5 Section of Wall
