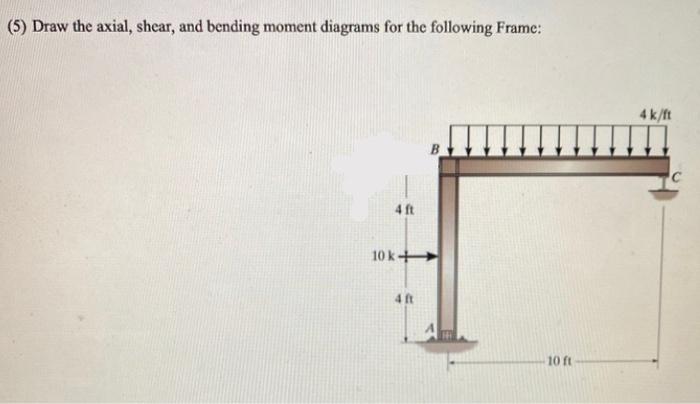

(5) Draw the axial, shear, and bending moment diagrams for the following Frame: 4k/ft B 4 ft 10k + 41 10 ft
