Question 1 10 Points The perpendicular distance from the tangent at PC to a point Q on a simple curve is 32m. If the cho

[answerhappygod]

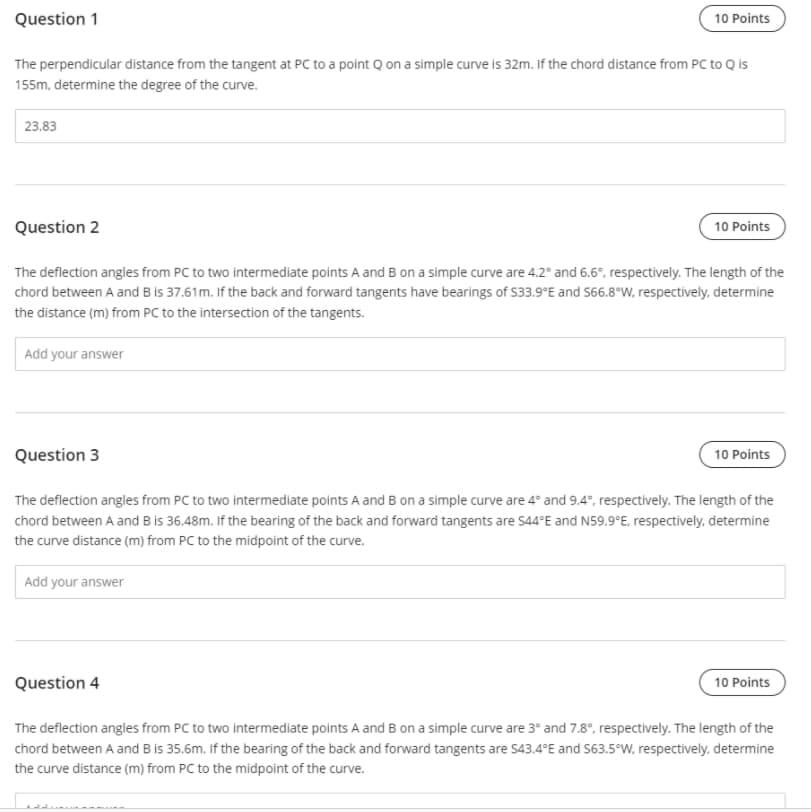

Question 1 10 Points The Perpendicular Distance From The Tangent At Pc To A Point Q On A Simple Curve Is 32m If The Cho 1 (58.07 KiB) Viewed 36 times

Question 1 10 Points The perpendicular distance from the tangent at PC to a point Q on a simple curve is 32m. If the chord distance from PC to Qis 155m, determine the degree of the curve. 23.83 Question 2 10 Points The deflection angles from PC to two intermediate points A and B on a simple curve are 4.2 and 6.6, respectively. The length of the chord between A and B is 37.61m. If the back and forward tangents have bearings of S33.9°E and 566.8*W, respectively, determine the distance (m) from PC to the intersection of the tangents. Add your answer Question 3 10 Points The deflection angles from PC to two intermediate points A and B on a simple curve are 4 and 9.4", respectively. The length of the chord between A and B is 36,48m. if the bearing of the back and forward tangents are 544E and N59.9°E, respectively, determine the curve distance (m) from PC to the midpoint of the curve. Add your answer Question 4 10 Points The deflection angles from PC to two Intermediate polnts A and B on a simple curve are 3* and 7.8", respectively. The length of the chord between A and B i5 35.5m. if the bearing of the back and forward tangents are 543.4ºE and S63.5°W, respectively, determine the curve distance (m) from PC to the midpoint of the curve.
