= A rectangular footing (3 mx 2 m in plan) shown in Figure 01 is founded at a depth of 1.5 m below the ground surface in
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
= A rectangular footing (3 mx 2 m in plan) shown in Figure 01 is founded at a depth of 1.5 m below the ground surface in

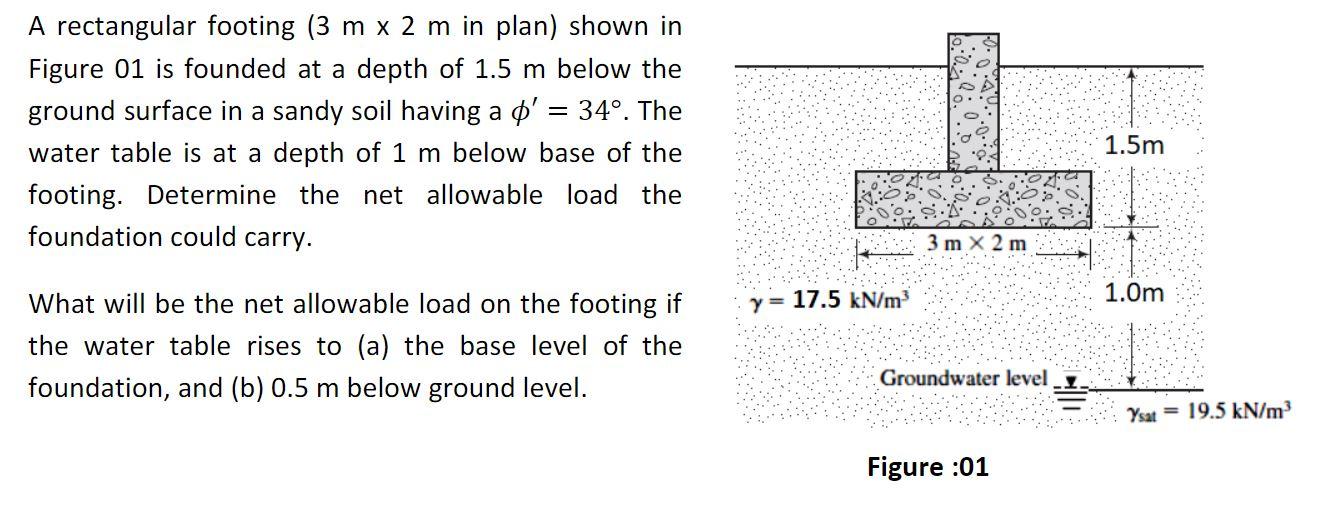

= A rectangular footing (3 mx 2 m in plan) shown in Figure 01 is founded at a depth of 1.5 m below the ground surface in a sandy soil having a d' 34°. The water table is at a depth of 1 m below base of the footing. Determine the net allowable load the foundation could carry. 1.5m 3 m X 2 m y = 17.5 kN/m 1.Om What will be the net allowable load on the footing if the water table rises to (a) the base level of the foundation, and (b) 0.5 m below ground level. Groundwater level Ysat = 19.5 kN/m Figure :01
