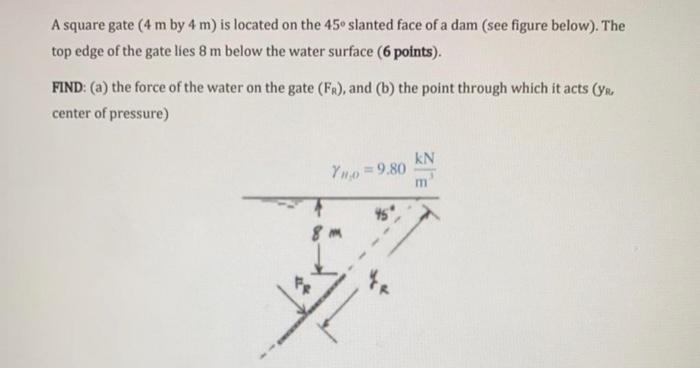

A square gate (4 m by 4 m) is located on the 45º slanted face of a dam (see figure below). The top edge of the gate lies 8 m below the water surface (6 points). FIND: (a) the force of the water on the gate (FR), and (b) the point through which it acts (yr center of pressure) KN 710 =9.80 m

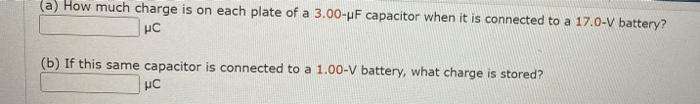

(a) How much charge is on each plate of a 3.00-4F capacitor when it is connected to a 17.0-V battery? pc (b) If this same capacitor is connected to a 1.00-V battery, what charge is stored? PC
