A) Give below the calculated value for the reaction at
support A (if the value is positive it will indicate that it points
upwards)
B) Give below the calculated value for the reaction at
support B (if the value is positive it will indicate that it points
upwards):
C) Give below the calculated value for the reaction at
support C (if the value is positive it will indicate that it points
upwards):
D) In which of the sections does the torsional moment have
a constant non-zero value:

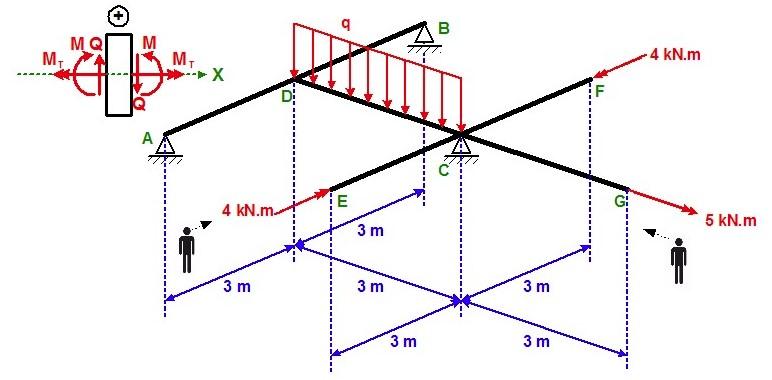

B MQ M M II. -4 kN.m х D: A E G: 4 kN.m. 5 kN.m 3 m 3 m 3 m 3 m 3 m 3 m
