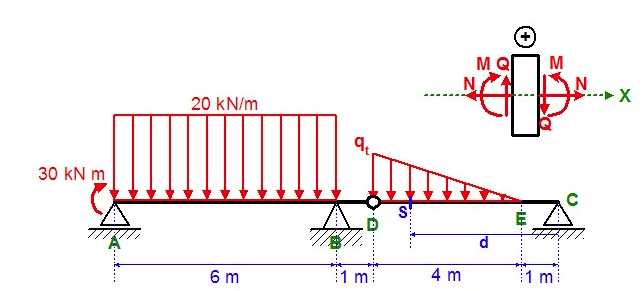

A) Provide below the calculated value for the normal force
N in the S section:
B) Provide below the calculated value for the shear force Q
in section S:
C) Give below the calculated value for the bending moment M
in section S:
D) Provide below the calculated value for the maximum
bending moment MMAX in the ABD section:
M MQ N X 20 kN/m 9. 30 kN m All 6 m 1 m 4 m 1 m
