Q.3) The semicircular gate is used to control the flow of water over a spillway. The gate has a weight of 8 Mg with cent
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q.3) The semicircular gate is used to control the flow of water over a spillway. The gate has a weight of 8 Mg with cent

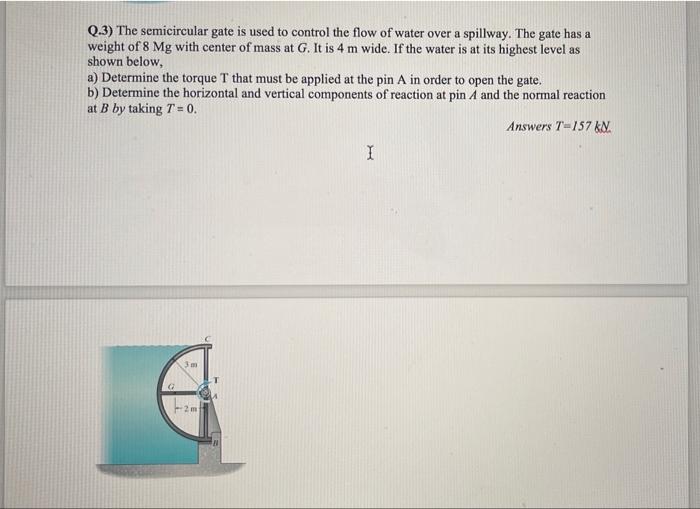

Q.3) The semicircular gate is used to control the flow of water over a spillway. The gate has a weight of 8 Mg with center of mass at G. It is 4 m wide. If the water is at its highest level as shown below, a) Determine the torque T that must be applied at the pin A in order to open the gate. b) Determine the horizontal and vertical components of reaction at pin A and the normal reaction at B by taking T = 0. Answers T-157 kB I
