Determine the horizontal and vertical deflection, in millimeter, at point D of the frame shown. Use E = 200,000 MPa and

Post by answerhappygod »

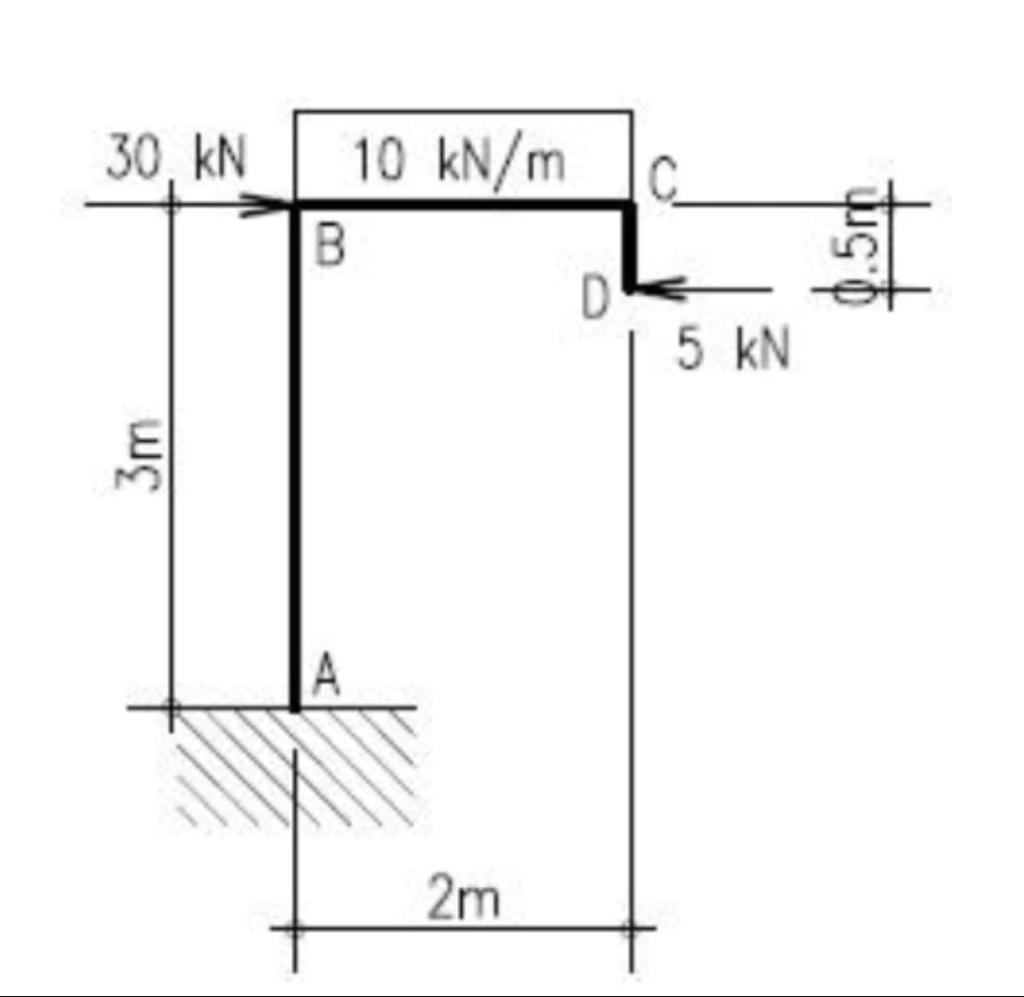

Determine the horizontal and vertical deflection, in millimeter,
at point D of the frame shown. Use E = 200,000 MPa and I = 10,200 x
10^6 mm^4. Ignore effect of axial deformations.
Determine The Horizontal And Vertical Deflection In Millimeter At Point D Of The Frame Shown Use E 200 000 Mpa And 1
Determine The Horizontal And Vertical Deflection In Millimeter At Point D Of The Frame Shown Use E 200 000 Mpa And 1 (41.08 KiB) Viewed 37 times
30 KN 10 kN/m B 1 D 5 KN 3m A 2m
