Compute for the reaction A and E.
WHAT IS THE MAXIMUM NEGATIVE SHEAR. Draw the SHEAR DIAGRAM.
WHAT IS THE MAXIMUM POSITIVE MOMENT. Draw the MOMENT
DIAGRAM.

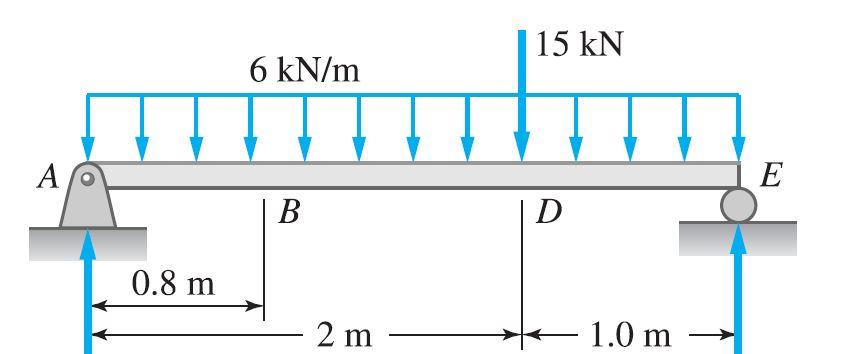

Compute For The Reaction A And E What Is The Maximum Negative Shear Draw The Shear Diagram What Is The Maximum Positi 1 (26.83 KiB) Viewed 38 times
15 kN 6 kN/m А E В B D 0.8 m 2 m 1.0 m
