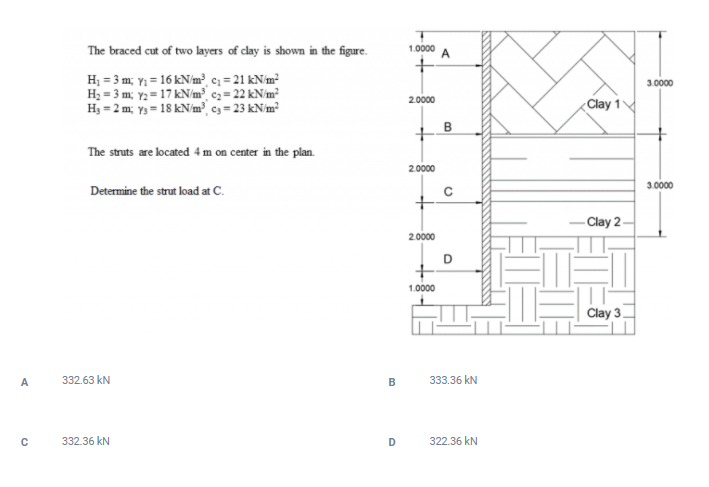

1.0000 A + The braced cut of two layers of clay is shown in the figure. H = 3 m, n = 16 kN/ mcı = 21 kN/m2 H2 = 3 m, Y2 = 17 kN/m2 C2 = 22 kN/m2 Hy = 2 m: Y = 18 kNm C = 23 kN/m2 3.0000 20000 Clay 1 00 B The struts are located 4 m on center in the plan 20000 3.0000 Determine the strut load at C + -Clay 2 2.0000 D + 1.0000 Clay 3 A 332.63 kN B 333.36 kN С 332.36 kN D 322.36 kN

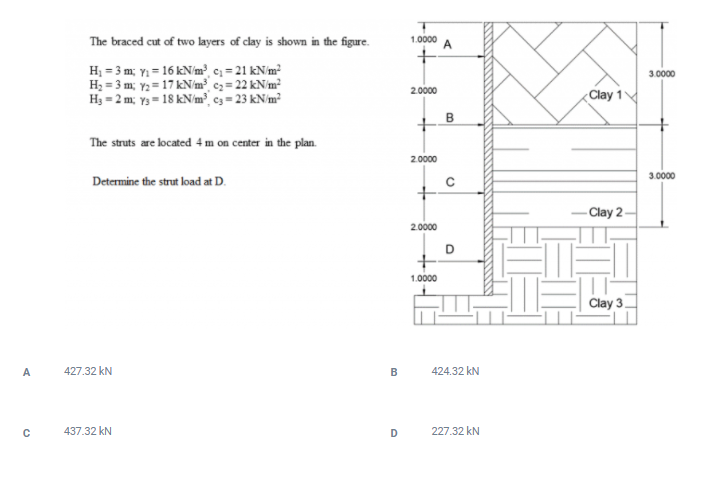

1.0000 А + The braced cut of two layers of clay is shown in the figure. H = 3 m; 7 = 16 kN/m2 = 21 kN/m2 H = 3 m: Y2 = 17 kN/m2 C2 = 22 kN/m2 H3 = 2 m: Y = 18 kN/m? C3 = 23 kN/m2 3.0000 2.0000 Clay 1 B 1 The struts are located 4 m on center in the plan. 20000 Determine the strut load at D. с 3.0000 Clay 2 20000 D 1.0000 Clay 3 A A 427.32 KN B 424.32 KN С 437.32 KN D 227.32 KN
