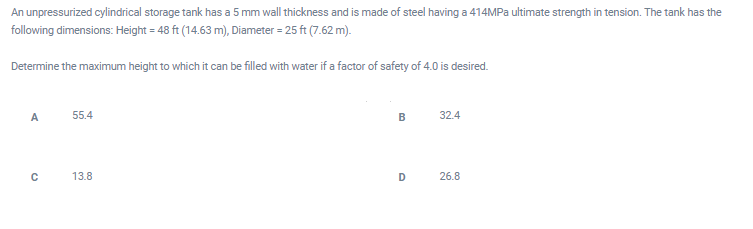

An unpressurized cylindrical storage tank has a 5 mm wall thickness and is made of steel having a 414MPa ultimate strength in tension. The tank has the following dimensions: Height = 48 ft (14.63 m), Diameter = 25ft (7.62 m). Determine the maximum height to which it can be filled with water if a factor of safety of 4.0 is desired. А 55.4 B 32.4 С 13.8 D 26.8

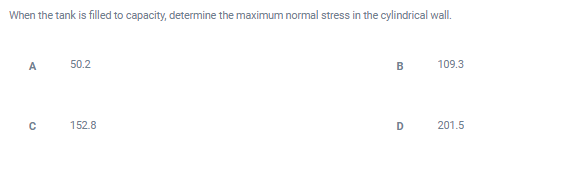

When the tank is filled to capacity, determine the maximum normal stress in the cylindrical wall. А 50.2 B 109.3 С 152.8 D 201.5

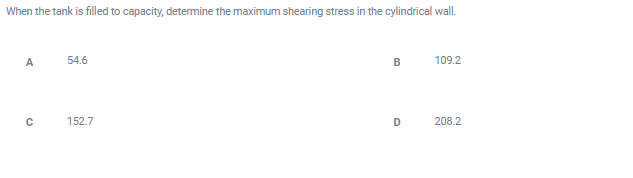

When the tank is filled to capacity, determine the maximum shearing stress in the cylindrical wall. А 54.6 B 109.2 С 152.7 D 208.2
