A beam of wide-flange shape has the cross section shown below. The dimensions are b = 106mm h = 240mm. ty = 8.7mm, and t

Post by answerhappygod »

A Beam Of Wide Flange Shape Has The Cross Section Shown Below The Dimensions Are B 106mm H 240mm Ty 8 7mm And T 1
A Beam Of Wide Flange Shape Has The Cross Section Shown Below The Dimensions Are B 106mm H 240mm Ty 8 7mm And T 1 (20.58 KiB) Viewed 45 times

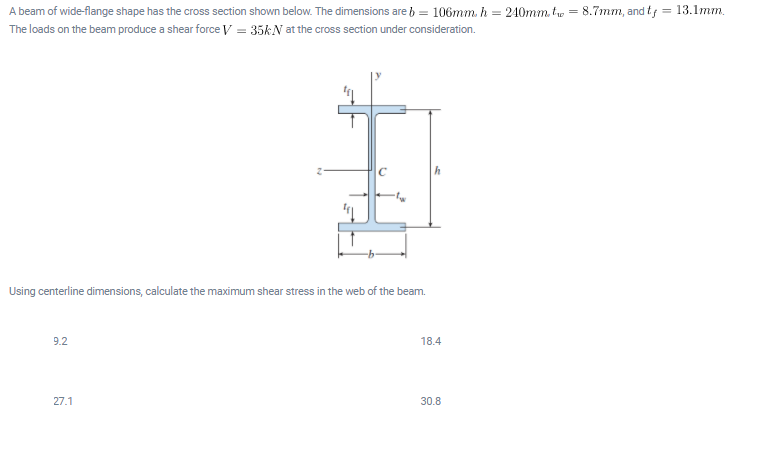

A beam of wide-flange shape has the cross section shown below. The dimensions are b = 106mm h = 240mm. ty = 8.7mm, and t; = 13.1mm. The loads on the beam produce a shear force V = 35kN at the cross section under consideration. с Using centerline dimensions, calculate the maximum shear stress in the web of the beam. 9.2 18.4 27.1 30.8
