3. Determine the slope at Cand deflection at D of the propped cantilever with an internal hinge at B using conjugate bea

[answerhappygod]

3 Determine The Slope At Cand Deflection At D Of The Propped Cantilever With An Internal Hinge At B Using Conjugate Bea 1 (15.21 KiB) Viewed 39 times

Urgently answer required in 10in

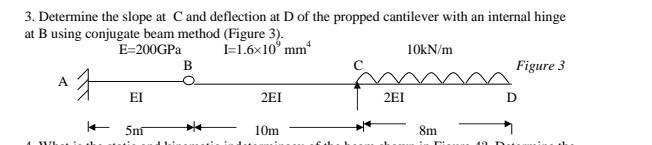

3. Determine the slope at Cand deflection at D of the propped cantilever with an internal hinge at B using conjugate beam method (Figure 3). E=200GPa I=1.6x10 mm 10kN/m B Figure 3 A EI 2ΕΙ 2EI 5m 10m 8m
