3. Determine the slope at C and deflection at D of the propped cantilever with an internal hinge at B using conjugate be

Post by answerhappygod »

3 Determine The Slope At C And Deflection At D Of The Propped Cantilever With An Internal Hinge At B Using Conjugate Be 1
3 Determine The Slope At C And Deflection At D Of The Propped Cantilever With An Internal Hinge At B Using Conjugate Be 1 (57.2 KiB) Viewed 41 times

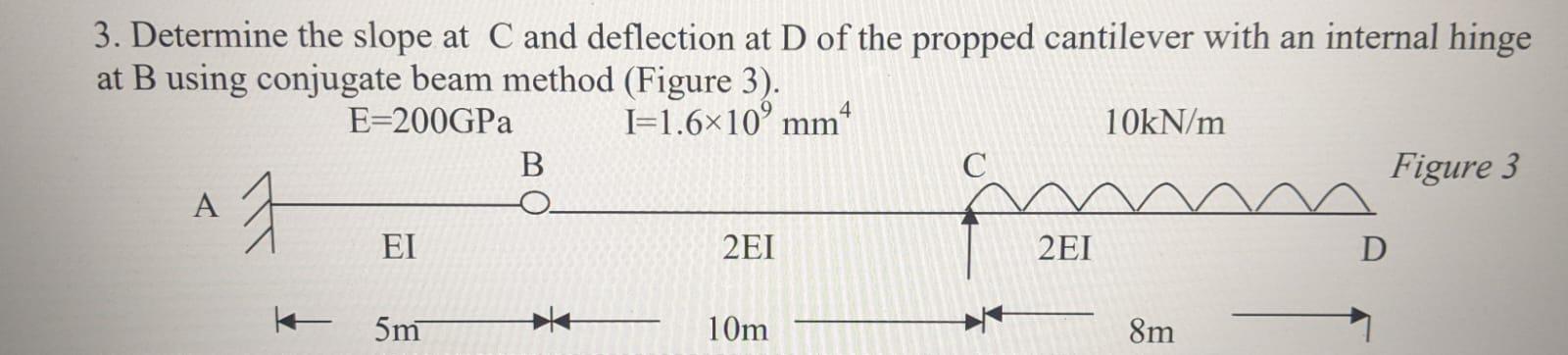

3. Determine the slope at C and deflection at D of the propped cantilever with an internal hinge at B using conjugate beam method (Figure 3). E=200GPa 1=1.6x100 mm 10kN/m B С Figure 3 4 카 EI 2EI 2EI D 1 5m 10m 8m
