1. Analyze the frame shown in Figure 1 by Slope deflection method. Draw the shear force and bending moment diagram. 40KN

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

1. Analyze the frame shown in Figure 1 by Slope deflection method. Draw the shear force and bending moment diagram. 40KN

Post by answerhappygod »

1 Analyze The Frame Shown In Figure 1 By Slope Deflection Method Draw The Shear Force And Bending Moment Diagram 40kn 1
1 Analyze The Frame Shown In Figure 1 By Slope Deflection Method Draw The Shear Force And Bending Moment Diagram 40kn 1 (21.98 KiB) Viewed 29 times
please give the detailed solution asap. Thank you.

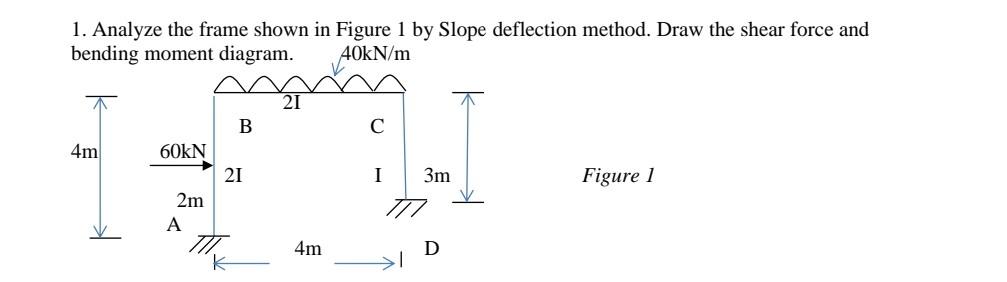

1. Analyze the frame shown in Figure 1 by Slope deflection method. Draw the shear force and bending moment diagram. 40KN/m 不一 21 B С 4m 60KN 21 I 3m Figure 1 2m A 4m D
