60mm, 60mm -O 1 100mm 100mm 2 w w 100mm 4 100mm A staggered bolted connection has bolts arranged as shown. Diameter of b

Post by answerhappygod »

60mm 60mm O 1 100mm 100mm 2 W W 100mm 4 100mm A Staggered Bolted Connection Has Bolts Arranged As Shown Diameter Of B 1
60mm 60mm O 1 100mm 100mm 2 W W 100mm 4 100mm A Staggered Bolted Connection Has Bolts Arranged As Shown Diameter Of B 1 (56.2 KiB) Viewed 19 times

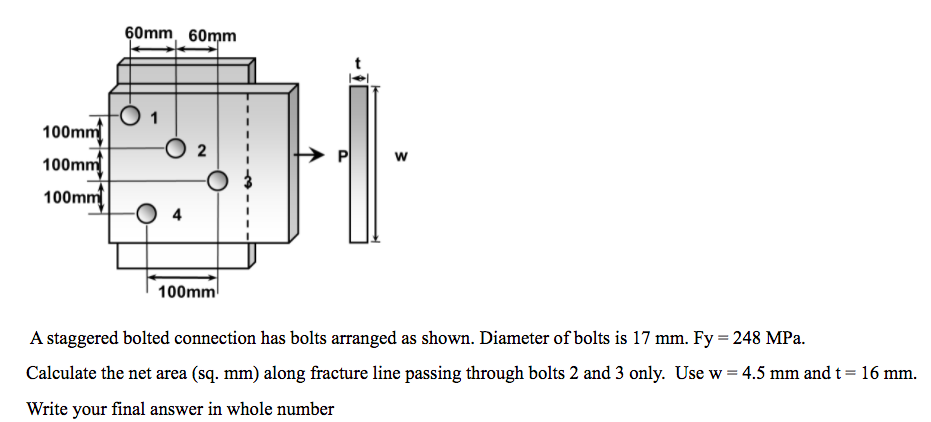

60mm, 60mm -O 1 100mm 100mm 2 w w 100mm 4 100mm A staggered bolted connection has bolts arranged as shown. Diameter of bolts is 17 mm. Fy= 248 MPa. Calculate the net area (sq. mm) along fracture line passing through bolts 2 and 3 only. Use w = 4.5 mm and t= 16 mm. Write your final answer in whole number
