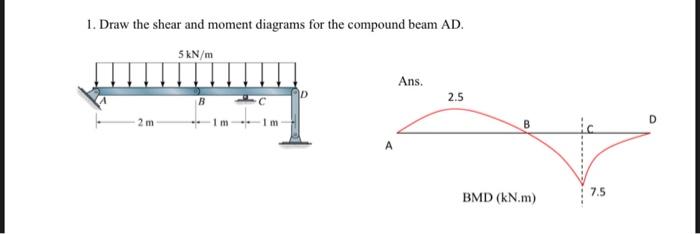

1. Draw the shear and moment diagrams for the compound beam AD. 5 kN/m Ans. B 2.5 B D 7.5 BMD (kN.m)
