Example 2: Determine the Per Unit Impedances by taking 150 MVA and 11 KV in generator side as base values for the given

Post by answerhappygod »

Example 2 Determine The Per Unit Impedances By Taking 150 Mva And 11 Kv In Generator Side As Base Values For The Given 1
Example 2 Determine The Per Unit Impedances By Taking 150 Mva And 11 Kv In Generator Side As Base Values For The Given 1 (26.06 KiB) Viewed 74 times

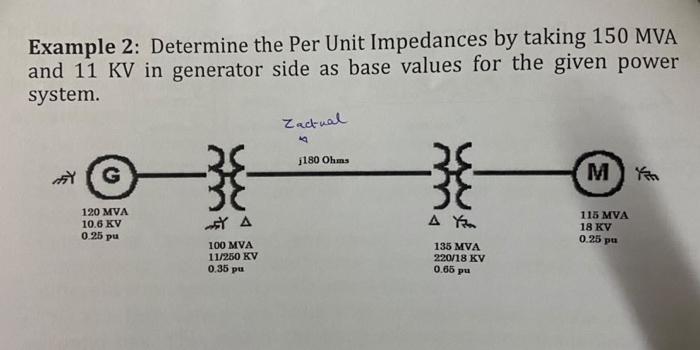

Example 2: Determine the Per Unit Impedances by taking 150 MVA and 11 KV in generator side as base values for the given power system. Zactual 180 Ohms st G -3 -3 MY 120 MVA 10.6 KV कॉA A Ya 115 MVA 18 KV 0.25 pu 0.25 p 100 MVA 11/250 KV 135 MVA 220/18 KV 0.35 pu 0.65 pa
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
