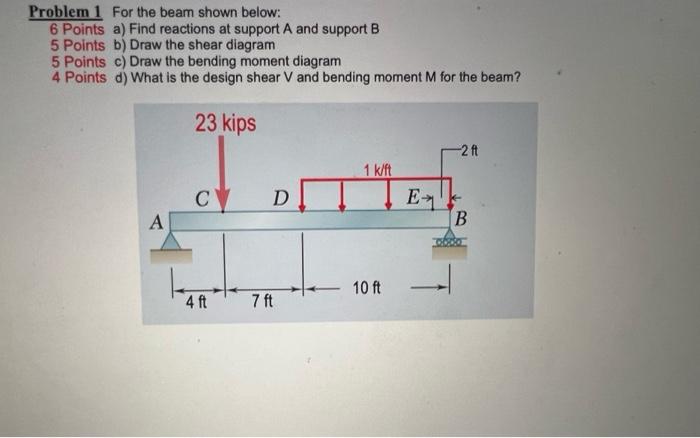

Problem 1 For the beam shown below: 6 Points a) Find reactions at support A and support B 5 Points b) Draw the shear diagram 5 Points c) Draw the bending moment diagram 4 Points d) What is the design shear V and bending moment M for the beam? 23 kips -2 ft torta 1 kft С D E- А B 10 ft 4 ft 7 ft
