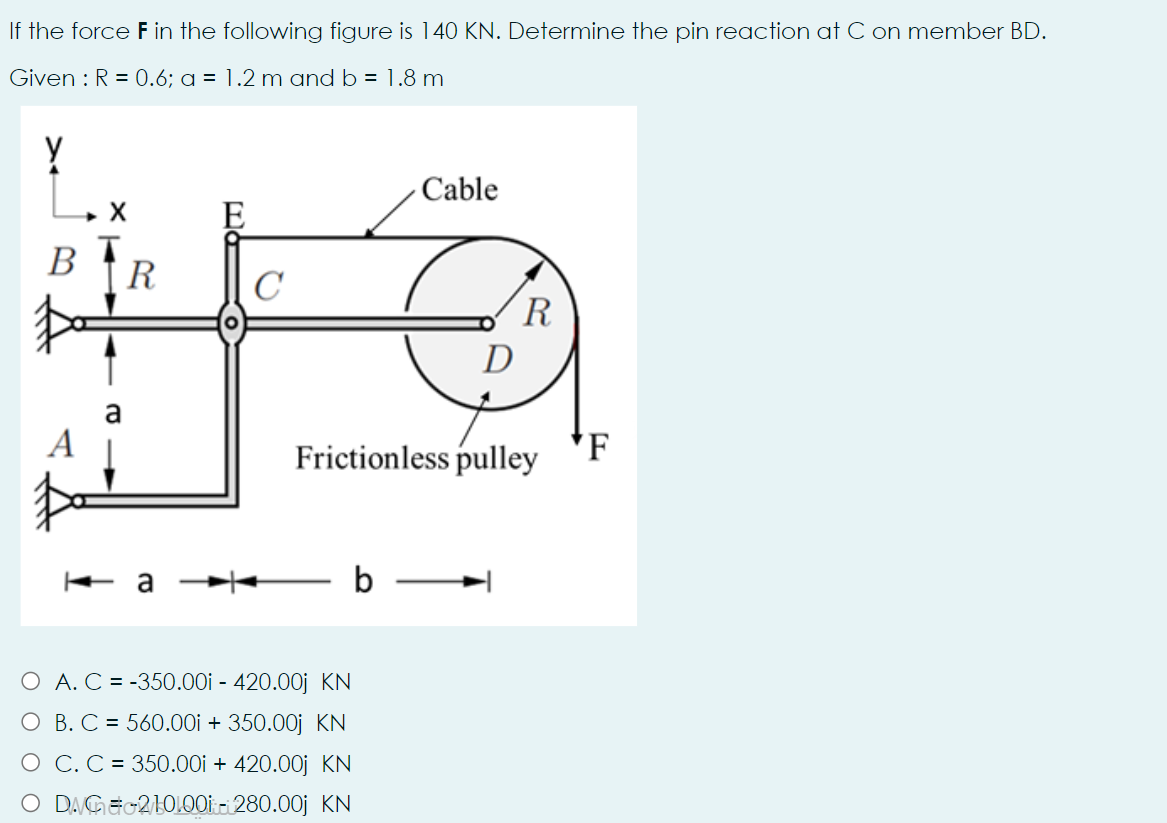

If the force F in the following figure is 140 KN. Determine the pin reaction at C on member BD. Given : R = 0.6; a = 1.2
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
If the force F in the following figure is 140 KN. Determine the pin reaction at C on member BD. Given : R = 0.6; a = 1.2
If the force F in the following figure is 140 KN. Determine the pin reaction at C on member BD. Given : R = 0.6; a = 1.2 m and b = 1.8 m у Cable X E B R С pa R D Frictionless pulley F ka b O A. C = -350.00i - 420.00j KN O B. C = 560.00i + 350.00j KN O C. C = 350.00i + 420.00; KN O DAG#-210.001 - 280.00j KN
