А AB: E=100GPa; BC: E=200GPa, P=5kN, Q=10kN, Find the displacement at A 0.4 m 20-mm diameter B Steps: 1)Determine the in

Post by answerhappygod »

1
1 (64.15 KiB) Viewed 86 times
total length change

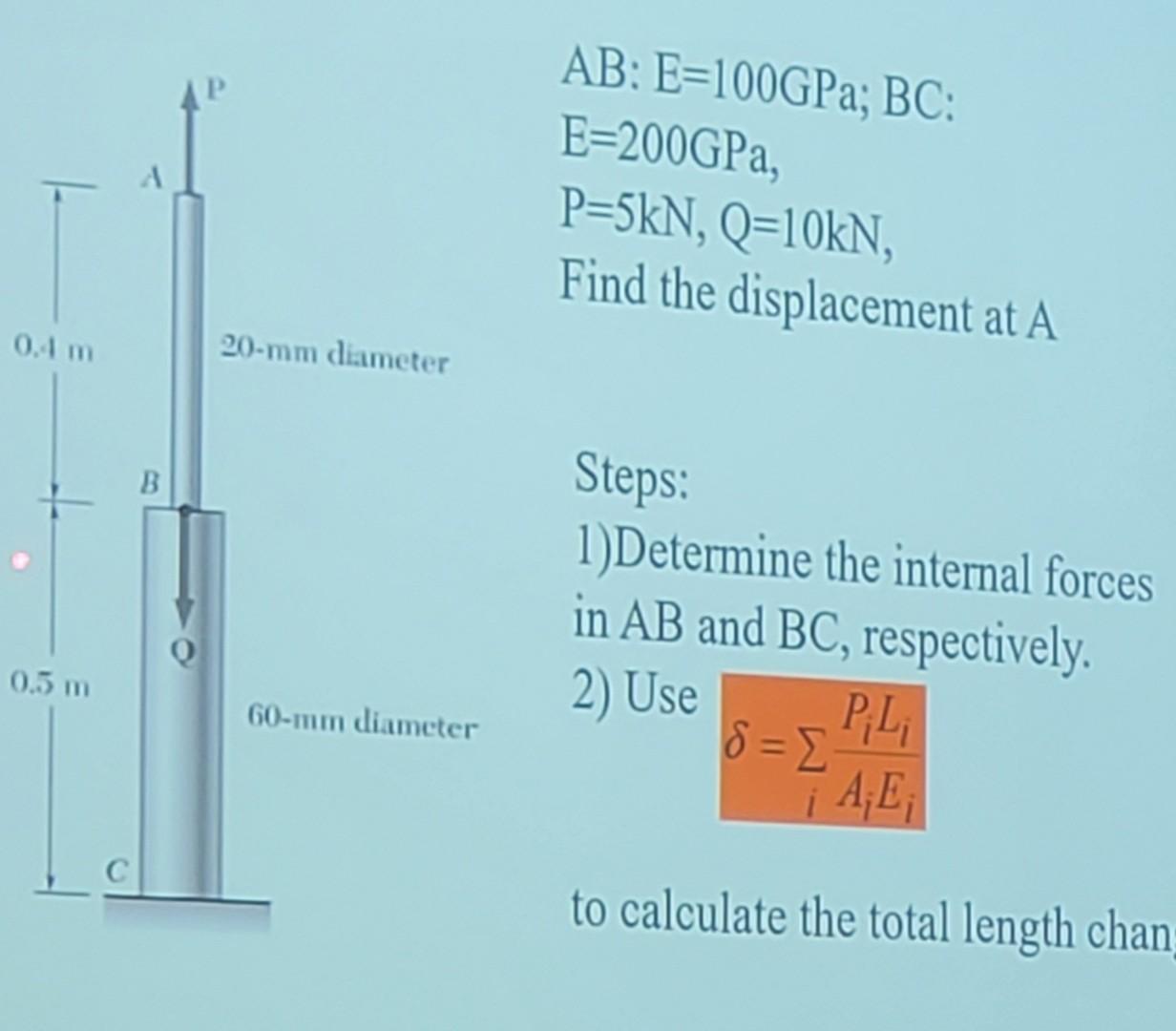

А AB: E=100GPa; BC: E=200GPa, P=5kN, Q=10kN, Find the displacement at A 0.4 m 20-mm diameter B Steps: 1)Determine the internal forces in AB and BC, respectively. PL 0.5 m 2) Use 60-mm diameter δ =Σ i A;E; С to calculate the total length chan
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
