A beam which is pinned at point A is subjected to three external forces. Determine the net moment of the force system ab

Post by answerhappygod »

A beam which is pinned at point A is subjected to three external
forces. Determine the net moment of the force system about point A.
175 N-m CCW

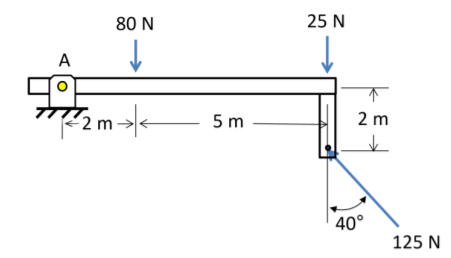

A Beam Which Is Pinned At Point A Is Subjected To Three External Forces Determine The Net Moment Of The Force System Ab 1
A Beam Which Is Pinned At Point A Is Subjected To Three External Forces Determine The Net Moment Of The Force System Ab 1 (16.07 KiB) Viewed 76 times
80 N 25 N А 1722mok 5 m 2 m 40° 125 N
