please! (i ,j k)

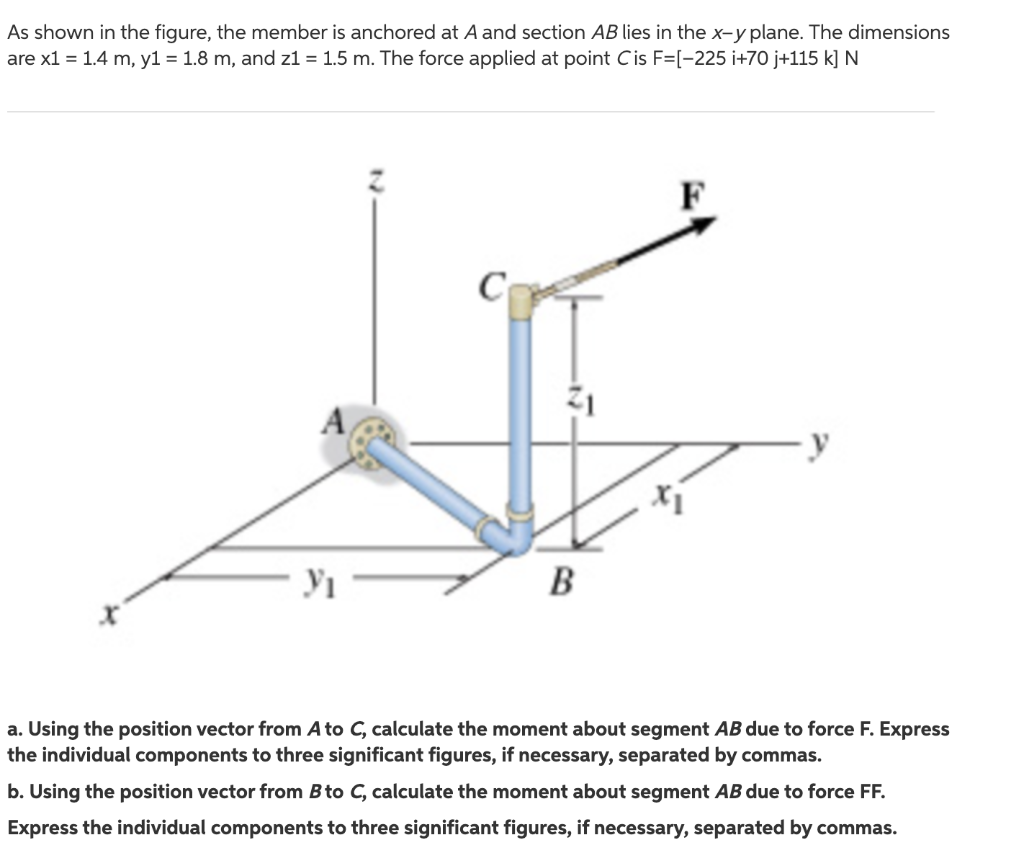

As shown in the figure, the member is anchored at A and section AB lies in the x-y plane. The dimensions are x1 = 1.4 m, y1 = 1.8 m, and z1 = 1.5 m. The force applied at point Cis F=[-225 i+70 j+115 k] N F с y B a. Using the position vector from A to C, calculate the moment about segment AB due to force F. Express the individual components to three significant figures, if necessary, separated by commas. b. Using the position vector from B to C, calculate the moment about segment AB due to force FF. Express the individual components to three significant figures, if necessary, separated by commas.
